Crimp Tool for 1060-16-1222-PS Pin and 1062-16-1222-PS Socket

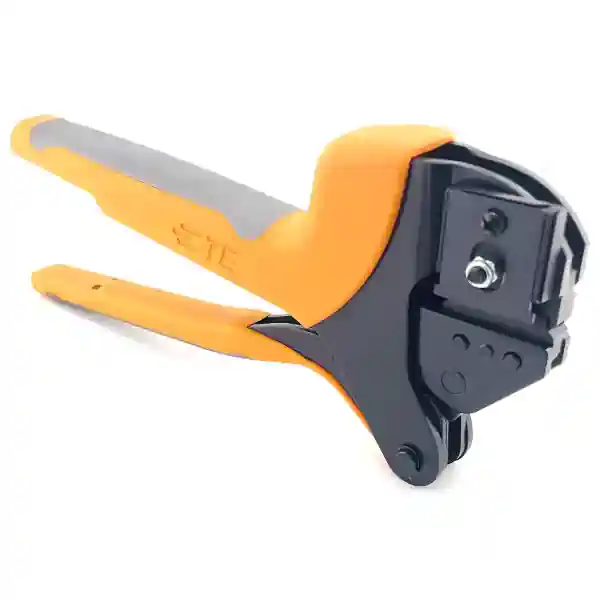

The DTT-16-00 Crimp Tool will crimp the following DT Series, Size 16, Stamped and Formed Pins and Sockets with the noted wire sizes and insulation diameters.
Download DTT-16-00 Instructions.pdf 1.4 MB

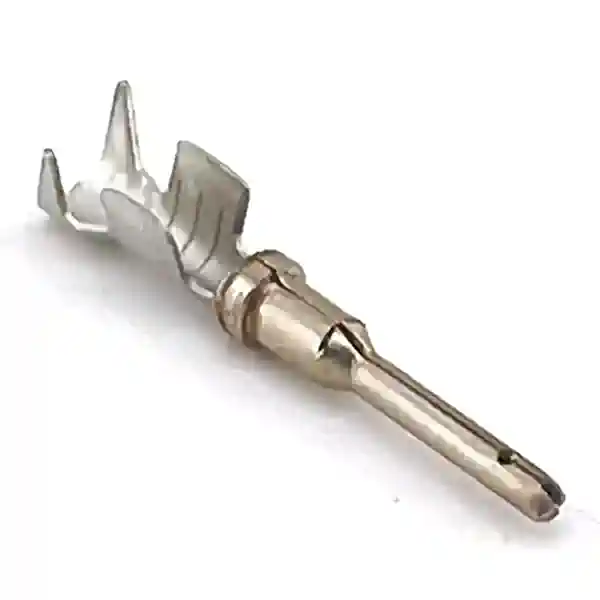

1060-16-1222-PS Pin

1060-16-1222-PS Pin

1062-16-1222-PS Pin

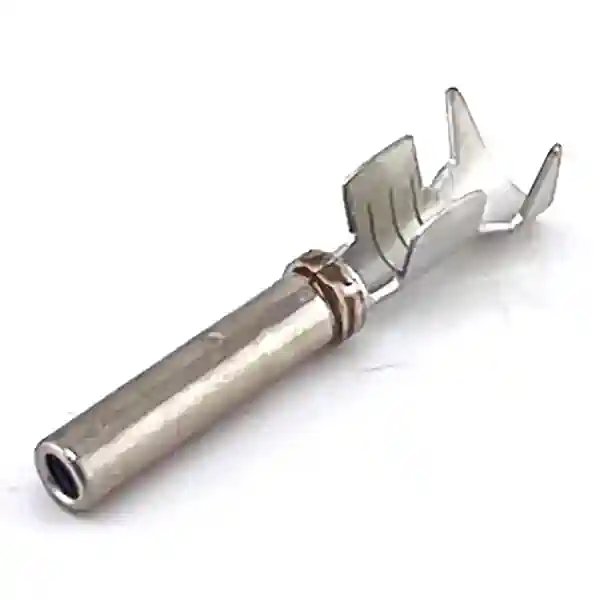

1062-16-1222-PS Socket

Use with Wire Size 14 AWG with .095" - .150" Insulation Diameter

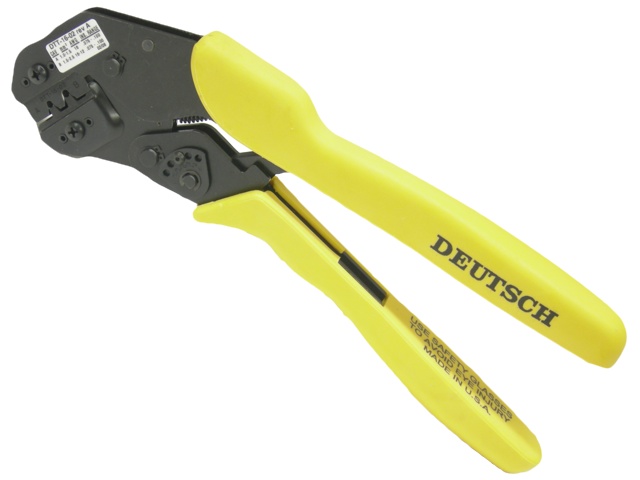

The DTT-16-02 Crimp Tool will crimp the following DT Series, Size 16, Stamped and Formed Pins and Sockets with the noted wire sizes and insulation diameters.
Download DTT-16-02 Instructions.pdf 1.5 MB
1060-16-1222-PS Pin

1060-16-1222-PS Pin

1062-16-1222-PS Pin

1062-16-1222-PS Socket

Use with Wire Size 12 or 14 AWG with .095" - .132" Insulation Diameter
or
Wire Size 16 AWG with .075" - .132" Insulation Diameter
