DTHD Series Pins and Sockets
Deutsch DTHD Series pins and sockets support single-contact high-current DTHD connector applications in Size 12, Size 8, and Size 4. Match the contact to the DTHD cavity size, pin/socket gender, wire gauge, amperage requirement, and any reducer sleeve needed for the conductor size.
Click image to enlarge
Deutsch 1060-12-0166 Pin, Stamped and Formed, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs.
Click image to enlarge
Deutsch 1062-12-0166 Socket, Stamped and Formed, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs.
Click image to enlarge
Deutsch 1060-12-0222 Pin, Stamped and Formed, Nickel, 10 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs.
Click image to enlarge
Deutsch 1062-12-0222 Socket, Stamped and Formed, Nickel, 10 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs.
Click image to enlarge
Deutsch 0460-204-12141 Pin, Solid, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles.
Click image to enlarge
Deutsch 0462-203-12141 Socket, Solid, Nickel, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs.
Tri-Star C10-1212-090 Socket, Solid, Nickel, 12-14 AWG. This TE Connectivity Tri-Star Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs.
Click image to enlarge
Deutsch 0460-220-1231 Pin, Solid, Gold, 12-14 AWG. This TE Connectivity Deutsch Size 12 pin contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series receptacles and DTHD Series, size 12, receptacles.
Click image to enlarge
Deutsch 0462-210-1231 Socket, Solid, Gold, 12-14 AWG. This TE Connectivity Deutsch Size 12 socket contact is used for Deutsch DTP Series and size 12 DTHD Series connector builds and repairs. Fits all DTP Series plugs and DTHD Series, size 12, plugs.
Click image to enlarge
Deutsch 0460-204-08141 Pin, Solid, Nickel, 8-10 AWG. This TE Connectivity Deutsch Size 8 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 8, receptacles.
Click image to enlarge
Deutsch 0462-203-08141 Socket, Solid, Nickel, 8-10 AWG. This TE Connectivity Deutsch Size 8 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 8, plugs.
Click image to enlarge
Deutsch 0460-204-0490 Pin, Solid, Nickel, 6 AWG. This TE Connectivity Deutsch Size 4 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits Deutsch DTHD Series applications. It uses nickel plating.
Click image to enlarge
Deutsch 0462-203-04141 Socket, Solid, Nickel, 6 AWG. This TE Connectivity Deutsch Size 4 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits Deutsch DTHD Series applications. It uses nickel plating.
Click image to enlarge
Deutsch 5960-203-04141 Pin, Solid, Nickel, 4 AWG. This TE Connectivity Deutsch Size 4 pin contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 4, receptacles.
Click image to enlarge
Deutsch 5962-203-04141 Socket, Solid, Nickel, 4 AWG. This TE Connectivity Deutsch Size 4 socket contact is used for Deutsch DTHD Series connector builds and repairs. Fits all DTHD Series, size 4, plugs.
Click image to enlarge

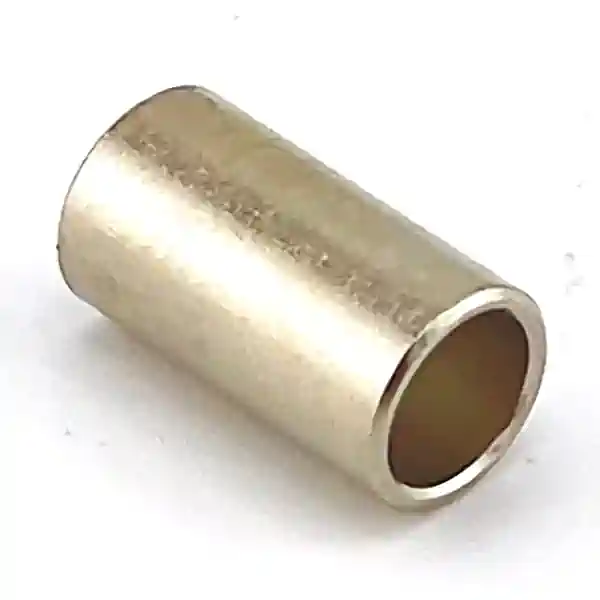

Deutsch 0421-203-04141 Crimp Sleeve Reducer, 8-10 AWG. This TE Connectivity Deutsch DTHD crimp sleeve reducer lets 8-10 AWG conductors be used with DTHD size 4 contacts that normally accept 6 AWG wire.
Click image to enlarge

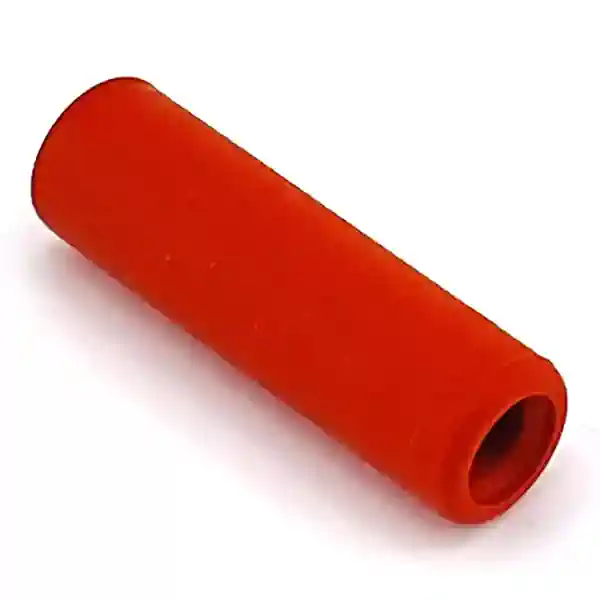

Deutsch 0410-241-0406 Crimp Sleeve Reducer Seal, 8-10 AWG. This TE Connectivity Deutsch DTHD crimp sleeve reducer seal supports DTHD size 4 connector service when adapting 8-10 AWG conductors with the matching reducer sleeve.
Click image to enlarge
Deutsch 114017 Sealing Plug, Thermoplastic, White. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies.
Click image to enlarge

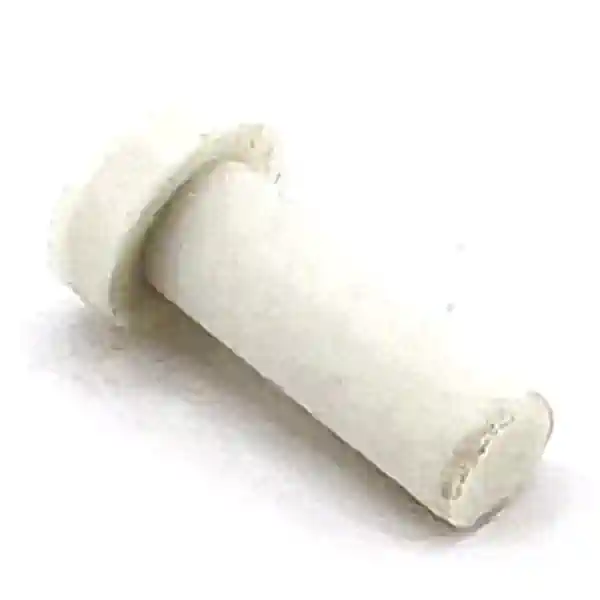

Deutsch 114018 Sealing Plug, Thermoplastic, White. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies.
Click image to enlarge

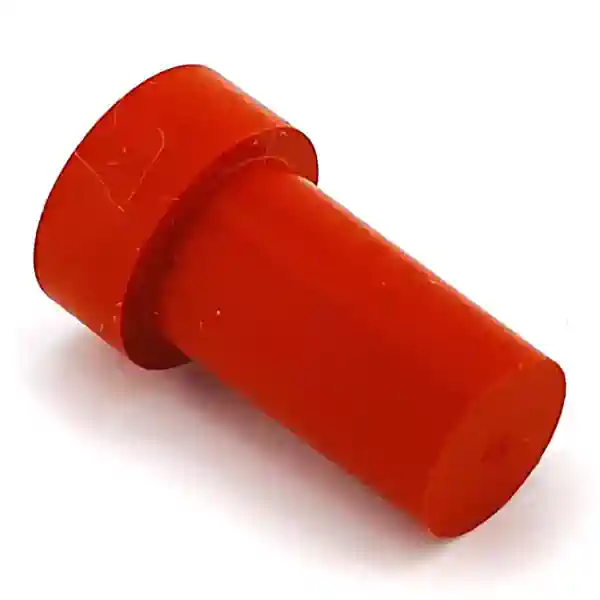

Deutsch 114019 Sealing Plug, Silicone Rubber, Orange. This TE Connectivity Deutsch sealing plug fills unused connector cavities to help preserve environmental sealing in compatible harness assemblies.
