DTM06-3S Wiring Harness
Deutsch DTM06-3S Wiring Harness, assembled with Solid Sockets using Genuine Deutsch 8-Indent Crimp Tooling and Thin Wall Cross-link 125°C SAE J1128-GXL Automotive Wire.
Details
Accessories
Replacement Parts
| Manufacturer Name: | TE Connectivity and Prestolite Wire, Assembled by DeutschConnector.com |
| Required Wedgelock: | Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTM Series |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Insulation: | Wire Insulation Type GXL |
| Wire Gauge: | Wire Gauges 16-20 AWG Available |
| Mates with: | All Deutsch DTM04-3P Receptacles |
| Current Rating: | Up to 7.5 Amps Continuous, depending on wire size and length. |
| Flange / Inline / PCB Mount: | In-line |
| Other: | Sealing Plugs will be installed in all empty cavities. |
| Pinout: |  Pinout - Rear View of Connector |

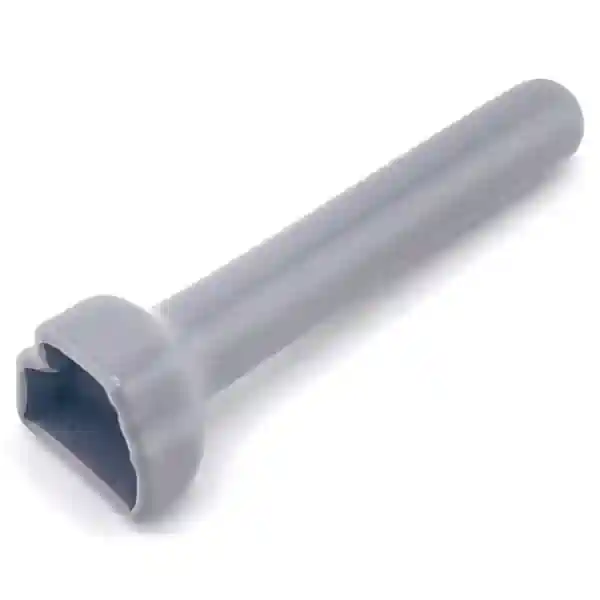

Boot, Gray
Fits most DTM06-3S Plugs

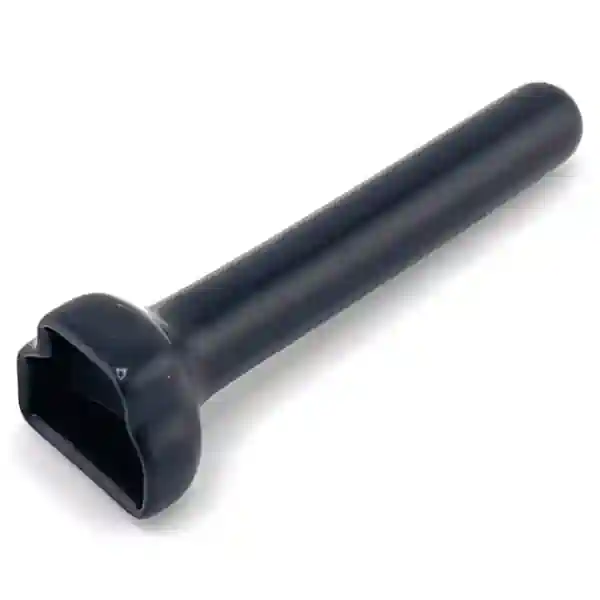

Boot, Black
Fits most DTM06-3S Plugs
Dust Cap, Fits DTM06-3S Plugs
Deutsch 0413-204-2005 Sealing Plug
Sealing Plug, for sealing unused cavities

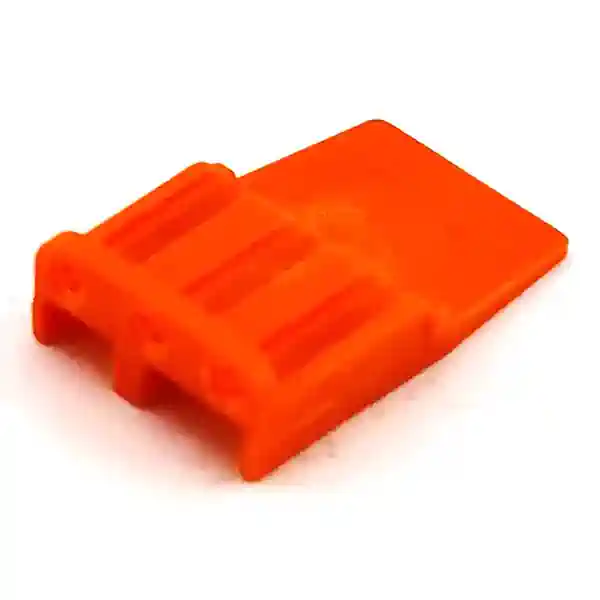

Wedgelock, Orange
Deutsch DTM06-3S Plug, Housing Only
Housing Only. No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 16-22 AWG, .075-.125 Insulation
Socket, Stamped and Formed, Nickel, 16-22 AWG, .051-.085 Insulation
Socket, Solid, Nickel, 18-20 AWG
Socket, Solid, Nickel, 16-18 AWG
Socket, Solid, Gold, 18-20 AWG
Socket, Solid, Gold, 16-18 AWG
