DTP06-4S Plug Assembly
Click image to enlarge
Deutsch DTP06-4S 4-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DTP04-4P Receptacles. DTP Series connectors are rated 25 amps continuous and accommodate wire sizes 10-14 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTP06-4S |
| Required Wedgelock: | WP-4S Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTP Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 4 |
| Insulation: | .134"-.170" |
| Wire Gauge: | 10-14 AWG |
| Mates with: | All Deutsch DTP04-4P Receptacles |
| Contact Size: | 12 |
| Current Rating: | 25 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |

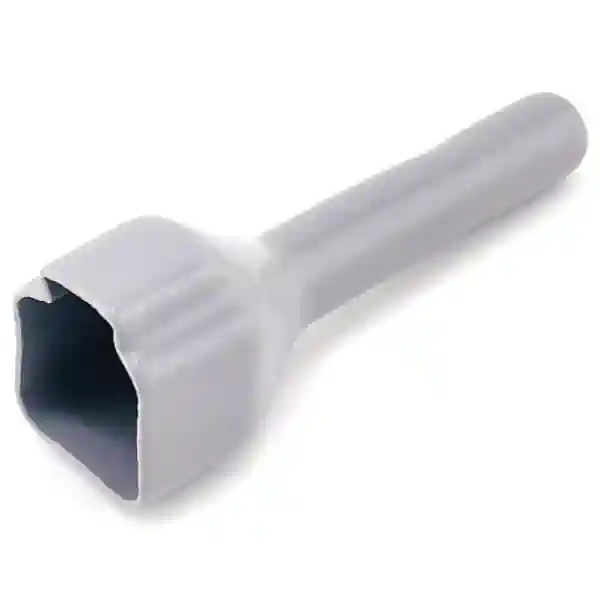

Boot, Gray
Fits most DTP06-4S Plugs
Sealing Plug, for sealing unused cavities

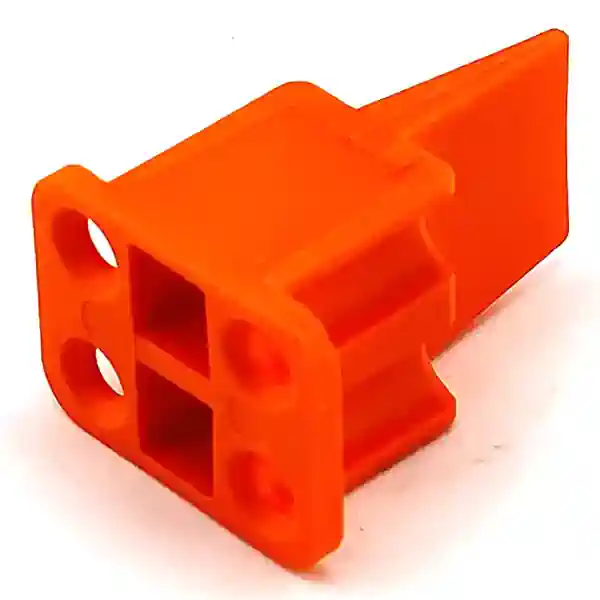

Wedgelock, Orange
Deutsch DTP06-4S Plug, Housing Only
Housing Only. No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 12-14 AWG, .113-.176 Insulation
Socket, Stamped and Formed, Nickel, 10 AWG, .140-.204 Insulation
Socket, Solid, Nickel, 12-14 AWG
Tri-Star C10-1212-090 Socket
Solid, Nickel, 12-14 AWG
Deutsch 0462-203-12141 Equivalent
Socket, Solid, Gold, 12-14 AWG
