DTP04-4P-L012 Receptacle Assembly
Click image to enlarge
Deutsch DTP04-4P-L012 4-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DTP06-4S Plugs. DTP Series connectors are rated at 25 amps continuous and accommodate wire sizes 10-14 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTP04-4P-L012 |
| Modification: | L012, Flange Mount |
| Required Wedgelock: | WP-4P Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTP Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 4 |
| Insulation: | .134"-.170" |
| Wire Gauge: | 10-14 AWG |
| Mates with: | All Deutsch DTP06-4S Plugs |
| Contact Size: | 12 |
| Current Rating: | 25 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | Flange Mount - Non-Sealed Flange |
| Required Gasket: | DTP4P-L012-GKT Not included, Order separately |
| Template: | Download Mounting Template - 41 KB |
Boot, Gray
Fits most DTP04-4P Receptacles

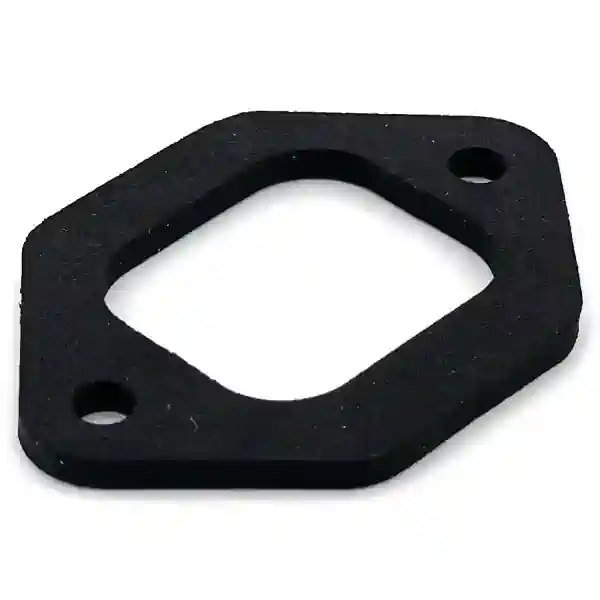

Gasket, Neoprene
Sealing Plug, for sealing unused cavities
Wedgelock, Orange
Seal, Internal
Seal, Internal
Deutsch DTP04-4P-L012 Receptacle, Housing Only
Housing Only. No Pins, No Wedgelock. Order Separately. Includes Seal(s).
Pin, Stamped and Formed, Nickel, 12-14 AWG, .113-.176 Insulation
Pin, Stamped and Formed, Nickel, 10 AWG, .140-.204 Insulation
Pin, Solid, Nickel, 12-14 AWG
Pin, Solid, Gold, 12-14 AWG
