DTP04-2P Receptacle Assembly
Click image to enlarge
Deutsch DTP04-2P 2-Way Receptacle Assembly, Gray. Complete with wedgelock and choice of pins. Mates with all DTP06-2S Plugs. DTP Series connectors are rated at 25 amps continuous and accommodate wire sizes 10-14 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTP04-2P |
| Required Wedgelock: | WP-2P Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTP Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 2 |
| Insulation: | .134"-.170" |
| Wire Gauge: | 10-14 AWG |
| Mates with: | All Deutsch DTP06-2S Plugs |
| Contact Size: | 12 |
| Current Rating: | 25 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | In-line |
Boot, Gray
Fits most DTP04-2P Receptacles

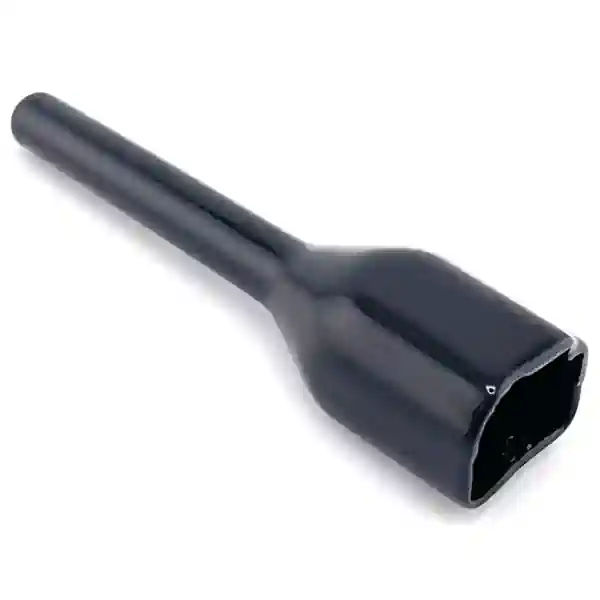

Boot, Black
Fits most DTP04-2P Receptacles
Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount
Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount
Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
Sealing Plug, for sealing unused cavities

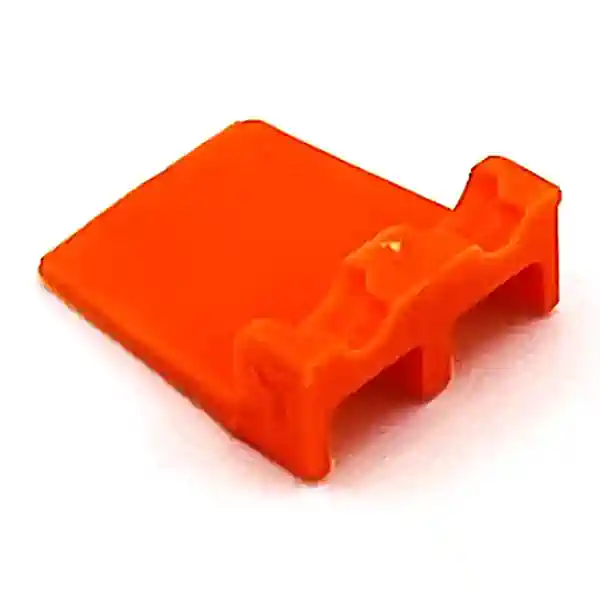

Wedgelock, Orange

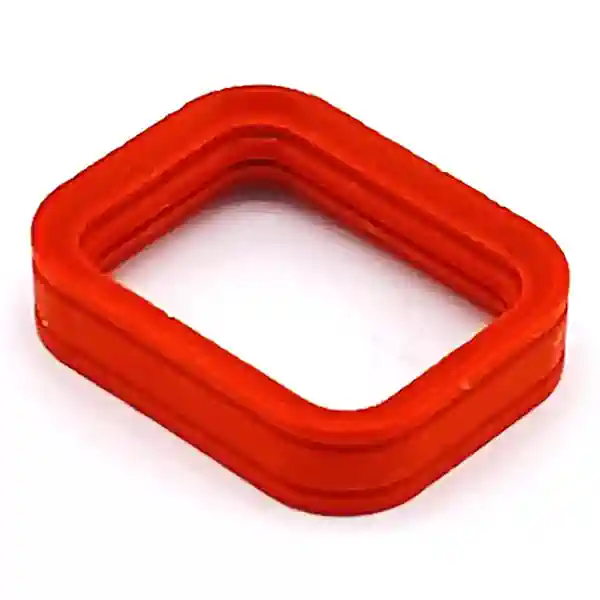

Seal, Internal
Deutsch DTP04-2P Receptacle, Housing Only
Housing Only. No Pins, No Wedgelock. Order Separately. Includes Seal(s).
Pin, Stamped and Formed, Nickel, 12-14 AWG, .113-.176 Insulation
Pin, Stamped and Formed, Nickel, 10 AWG, .140-.204 Insulation
Pin, Solid, Nickel, 12-14 AWG
Pin, Solid, Gold, 12-14 AWG
