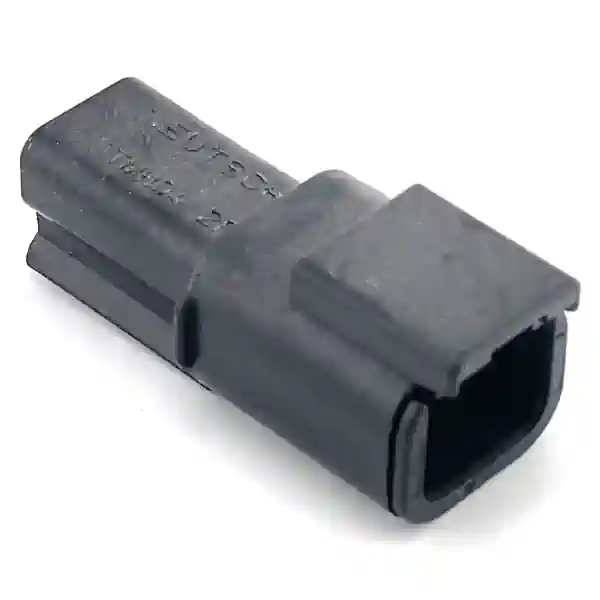

DTMH04-2PA Receptacle Assembly
Click image to enlarge
2-Way Receptacle Assembly, High Temp, Black, A key. Complete with integral wedgelock and choice of pins. Mates with DTMH06-2SA Plug. DTMH Series connectors are rated at 7.5 amps continuous and accommodate wire sizes 16-22 AWG. Operating Temperature -55° C to 150° C
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTMH04-2PA |
| Required Wedgelock: | Integral |
| Required Seals: | Silicone Rubber, Included |
| Series: | DTMH Series |
| Material: | Thermoplastic |
| Operating Temperature: | -55° C to +150° C |
| IP Rating: | IP67 |
| Color: | Black |
| Shape: | Rectangular |
| Cavities: | 2 |
| Insulation: | .053"-.120" |
| Wire Gauge: | 16-22 AWG |
| Keyed: | True, A Key |
| Mates with: | DTMH06-2SA Plug |
| Contact Size: | 20 |
| Current Rating: | 7.5 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | In-line |
Boot, Gray
Fits most DTM04-2P Receptacles
Boot, Black
Fits most DTM04-2P Receptacles
Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount
Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount
Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
Deutsch 0413-204-2005 Sealing Plug
Sealing Plug, for sealing unused cavities
Pin, Stamped and Formed, Nickel, 16-22 AWG, .075-.125 Insulation
Pin, Stamped and Formed, Nickel, 16-22 AWG, .051-.085 Insulation
Pin, Solid, Nickel, 18-20 AWG
Pin, Solid, Nickel, 16-18 AWG
Pin, Solid, Gold, 18-20 AWG
Pin, Solid, Gold, 16-18 AWG
