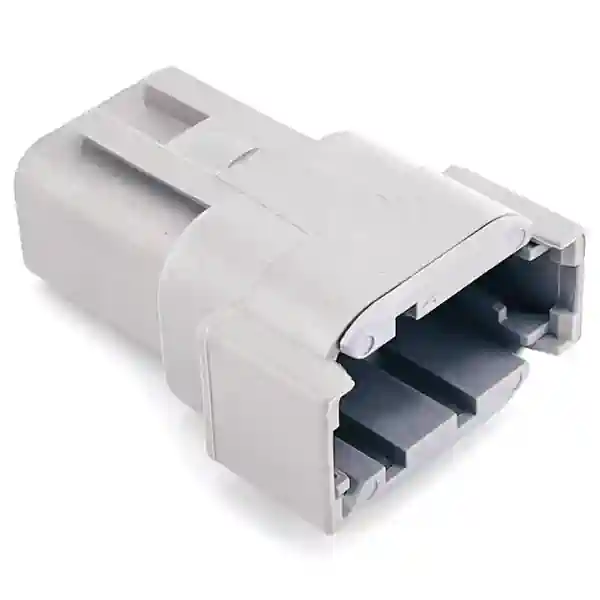

DTM04-08PA Receptacle Assembly
Click image to enlarge
Deutsch DTM04-08PA 8-Way Receptacle Assembly, Gray. Complete with wedgelock and choice of pins. Mates with all DTM06-08SA Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTM04-08PA |
| Required Wedgelock: | WM-8P Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTM Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 8 |
| Insulation: | .053"-.120" |
| Wire Gauge: | 16-22 AWG |
| Keyed: | True, A Key |
| Mates with: | All Deutsch DTM06-08SA Plugs |
| Contact Size: | 20 |
| Current Rating: | 7.5 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | In-line |

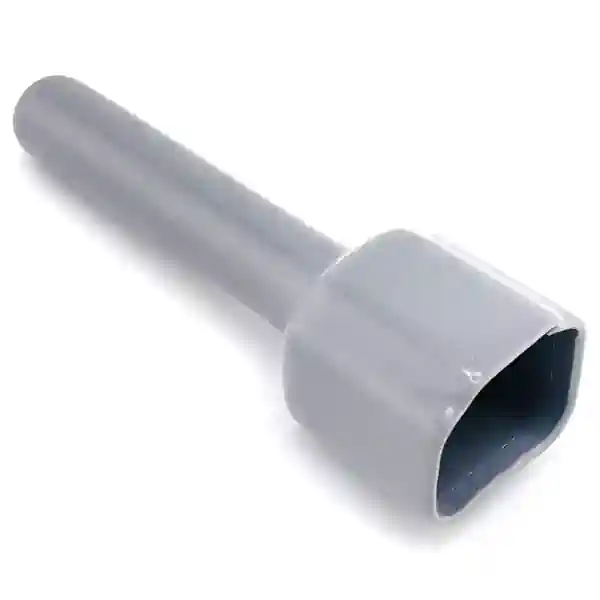

Boot, Gray
Fits most DTM04-08P Receptacles

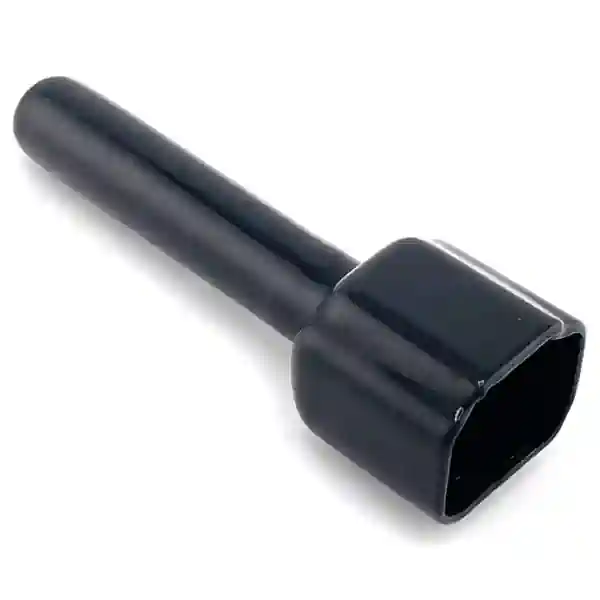

Boot, Black
Fits most DTM04-08P Receptacles
Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount
Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount
Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
Deutsch 0413-204-2005 Sealing Plug
Sealing Plug, for sealing unused cavities

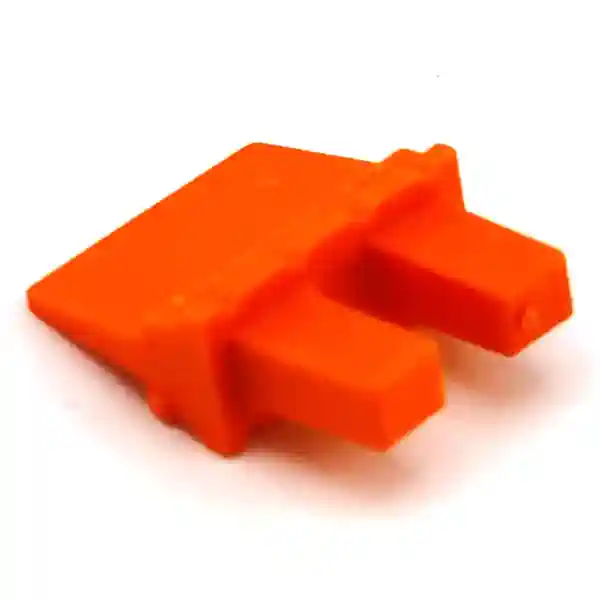

Wedgelock, Orange

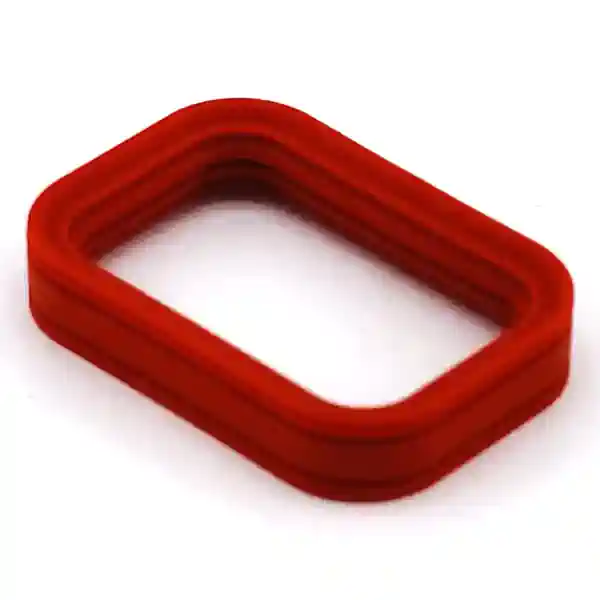

Seal, Internal
Deutsch DTM04-08PA Receptacle, Housing Only
Housing Only. No Pins, No Wedgelock. Order Separately. Includes Seal(s).
Pin, Stamped and Formed, Nickel, 16-22 AWG, .075-.125 Insulation
Pin, Stamped and Formed, Nickel, 16-22 AWG, .051-.085 Insulation
Pin, Solid, Nickel, 18-20 AWG
Pin, Solid, Nickel, 16-18 AWG
Pin, Solid, Gold, 18-20 AWG
Pin, Solid, Gold, 16-18 AWG
