DTM06-6S Plug Assembly
Click image to enlarge
Deutsch DTM06-6S 6-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DTM04-6P Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTM06-6S |
| Required Wedgelock: | WM-6S Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTM Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 6 |
| Insulation: | .053"-.120" |
| Wire Gauge: | 16-22 AWG |
| Mates with: | All Deutsch DTM04-6P Receptacles |
| Contact Size: | 20 |
| Current Rating: | 7.5 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |

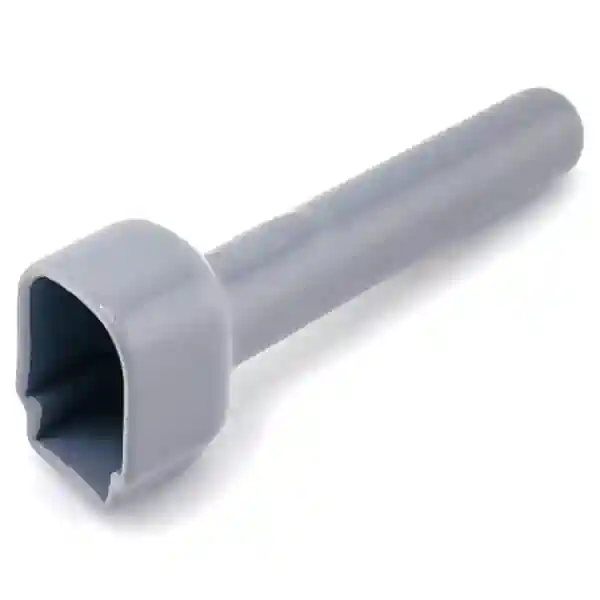

Boot, Gray
Fits most DTM06-6S Plugs
Deutsch 0413-204-2005 Sealing Plug
Sealing Plug, for sealing unused cavities

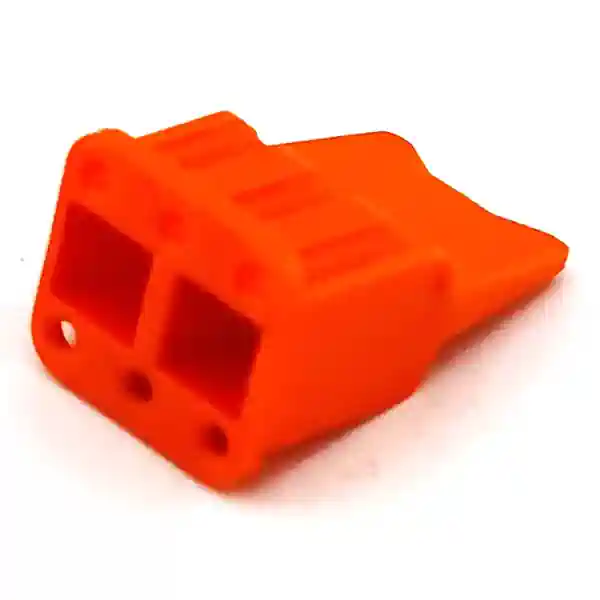

Wedgelock, Orange
Deutsch DTM06-6S Plug, Housing Only
Housing Only. No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 16-22 AWG, .075-.125 Insulation
Socket, Stamped and Formed, Nickel, 16-22 AWG, .051-.085 Insulation
Socket, Solid, Nickel, 18-20 AWG
Socket, Solid, Nickel, 16-18 AWG
Socket, Solid, Gold, 18-20 AWG
Socket, Solid, Gold, 16-18 AWG
