DTM04-2P-P007 "Y" Receptacle Assembly
Click image to enlarge
Deutsch DTM04-2P-P007 2-Way "Y" Receptacle Assembly, Black, Two Receptacle 90° Module. Molded-in Gold pins. Mates with all DTM06-2S Plugs. Includes the two WM-2SB keyed wedgelocks required for the mating plugs. Rated at 7.5 amps continuous.
Details
Accessories
Replacement Parts
Shipping
| Manufacturer Name: | TE Connectivity |
| Manufacturer Part Number: | DTM04-2P-P007 |
| Modification: | P007, "Y" Connector, Molded-In Gold Pins |
| Series: | Deutsch DTM Series |
| Material: | Thermoplastic |
| IP Rating: | IP67 |
| Color: | Black |
| Shape: | Rectangular |
| Cavities: | 2 |
| Keyed: | True, J1939, one mating plug requires a Standard, WM-2S, Orange Wedgelock and the other two mating plugs require WM-2SB, Black Wedgelocks. |
| Mates with: | All Deutsch DTM06-2S Plugs with appropriate wedgelocks as follows. One DTM06-2S Plug with WM-2S Wedgelock and Two DTM06-2S Plugs with WM-2SB Wedgelocks. |
| Contact Size: | 20 |
| Current Rating: | 7.5 Amps Continuous |
| Holds Pin / Socket: | Molded-in Gold Pins |
| Flange / Inline / PCB Mount: | In-Line |
Seal, Internal

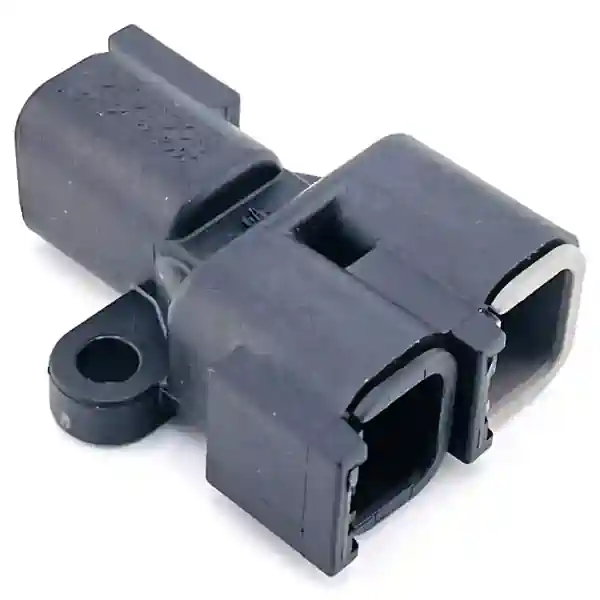

Deutsch DTM04-2P-P007 Receptacle, Housing Only, front
"Y" Receptacle, Molded-In Gold Pins
