DTM Series 12-Way Connectors
Click image to enlarge

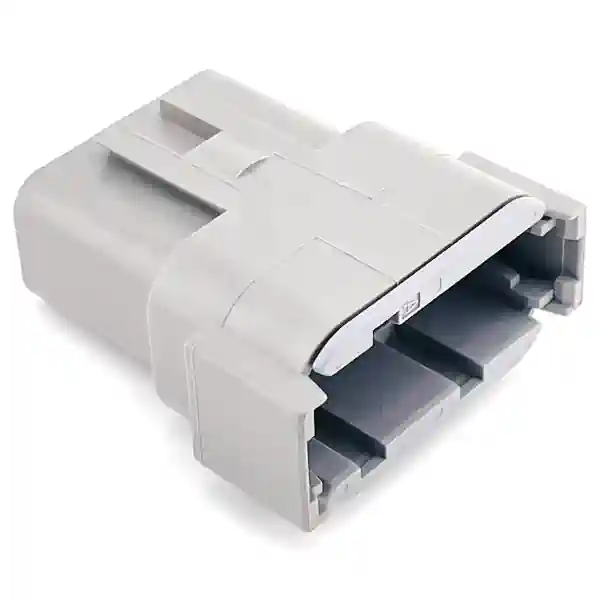

Deutsch DTM04-12PA 12-Way Receptacle Assembly, Gray. Complete with wedgelock and choice of pins. Mates with all DTM06-12SA Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
Click image to enlarge

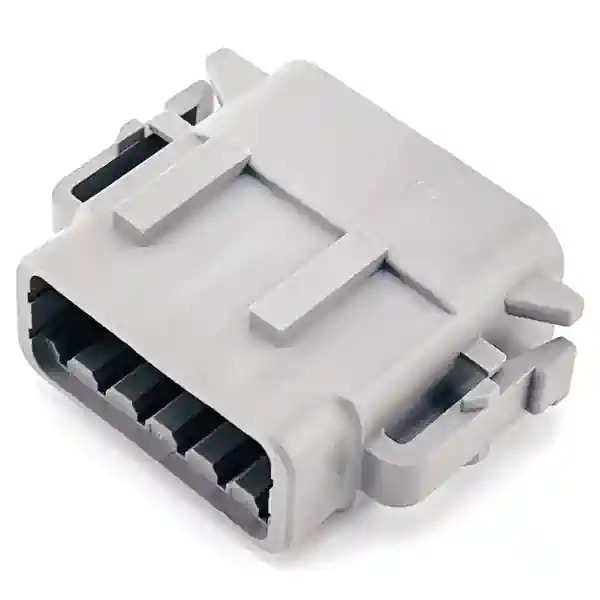

Deutsch DTM06-12SA 12-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PA Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

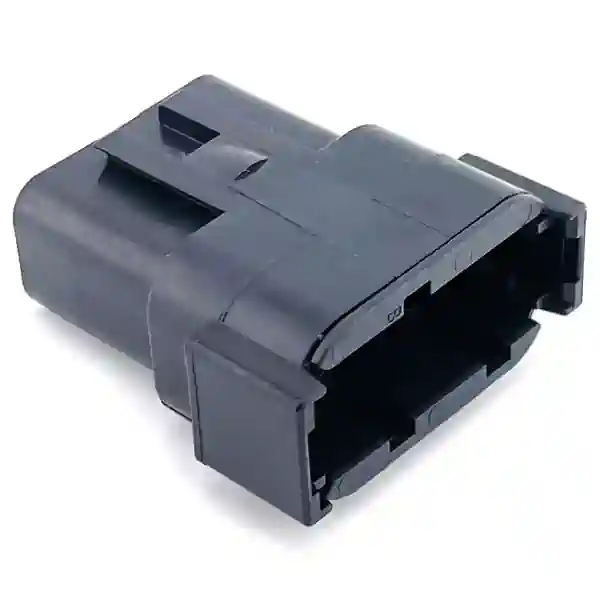

Deutsch DTM04-12PB 12-Way Receptacle Assembly, Black. Complete with wedgelock and choice of pins. Mates with all DTM06-12SB Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
Click image to enlarge
Deutsch DTM06-12SB 12-Way Plug Assembly, Black. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PB Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

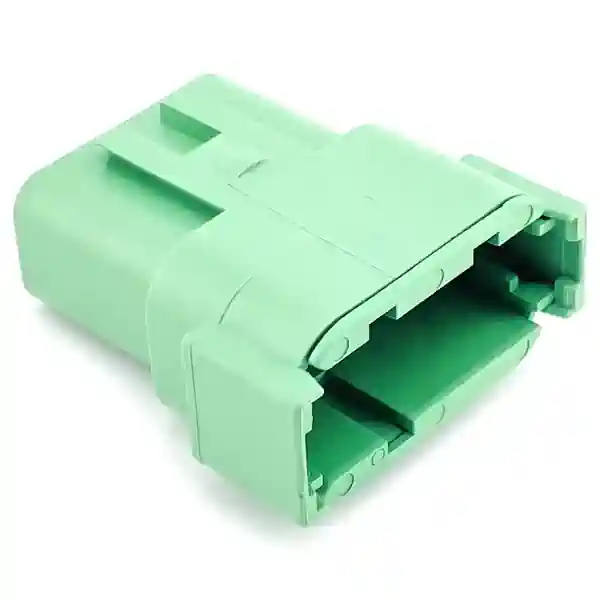

Deutsch DTM04-12PC 12-Way Receptacle Assembly, Green. Complete with wedgelock and choice of pins. Mates with all DTM06-12SC Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
Click image to enlarge

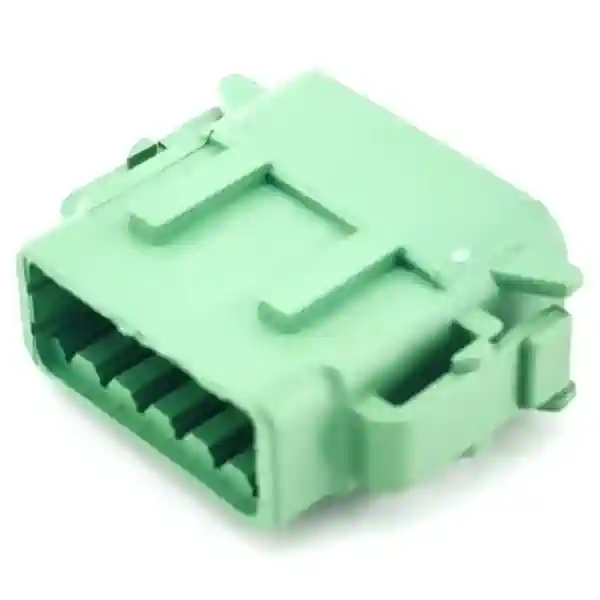

Deutsch DTM06-12SC 12-Way Plug Assembly, Green. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PC Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

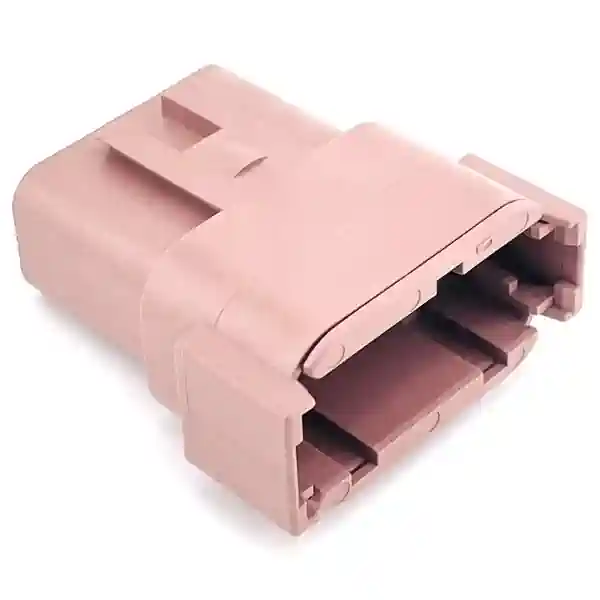

Deutsch DTM04-12PD 12-Way Receptacle Assembly, Brown. Complete with wedgelock and choice of pins. Mates with all DTM06-12SD Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
Click image to enlarge

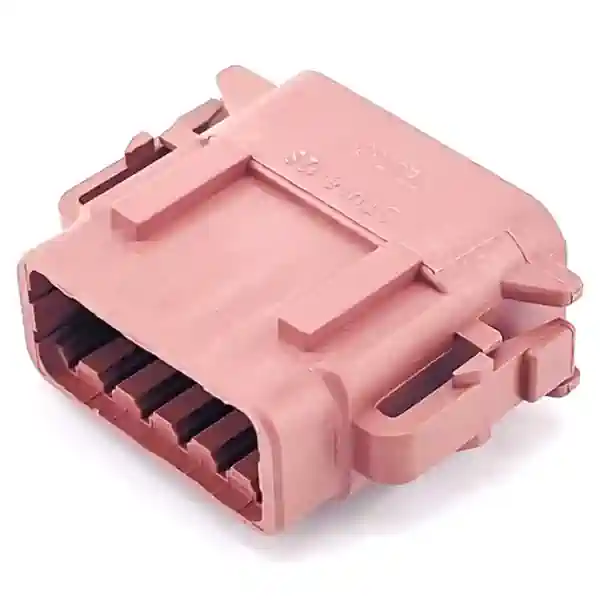

Deutsch DTM06-12SD 12-Way Plug Assembly, Brown. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PD Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

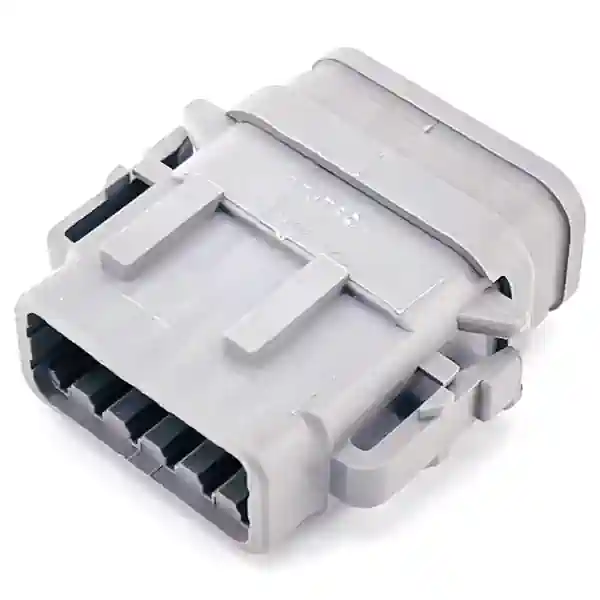

Deutsch DTM06-12SA-E007 12-Way Plug Assembly, Shrink Boot Adapter, Gray. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PA Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

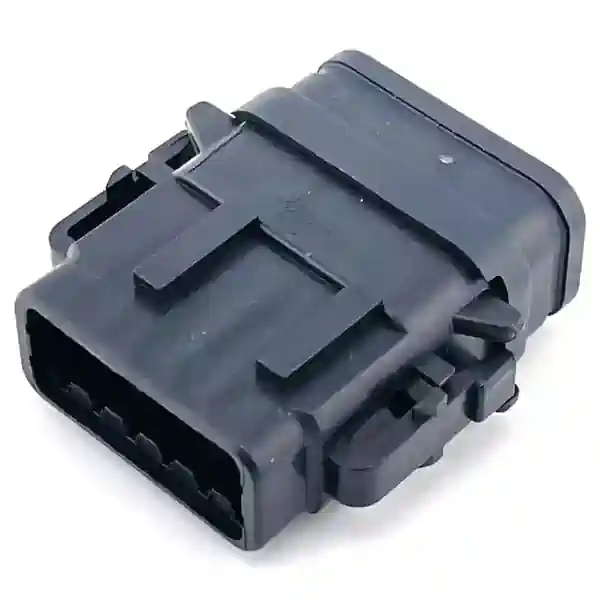

Deutsch DTM06-12SB-E007 12-Way Plug Assembly, Shrink Boot Adapter, Gray. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PB Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge
Deutsch DTM06-12SC-E007 12-Way Plug Assembly, Shrink Boot Adapter, Green. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PC Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

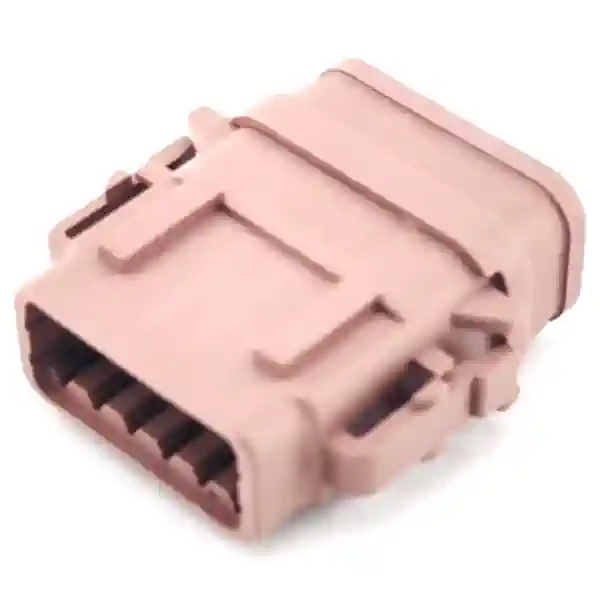

Deutsch DTM06-12SD-E007 12-Way Plug Assembly, Shring Boot Adapter, Gray. Complete with wedgelock and choice of sockets. Mates with all DTM04-12PA Receptacles. DTM Series connectors are rated 7.5 amps continuous and accommodate wire sizes 16-22 AWG.
Click image to enlarge

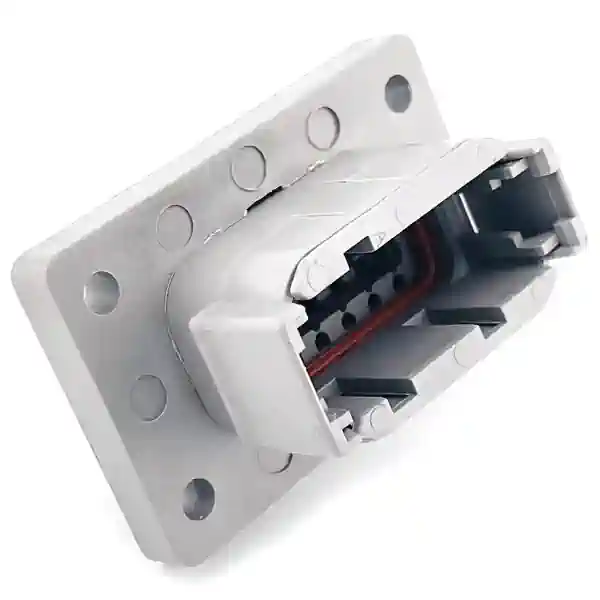

Deutsch DTM04-12PA-L012 12-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DTM06-12SA Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
Click image to enlarge

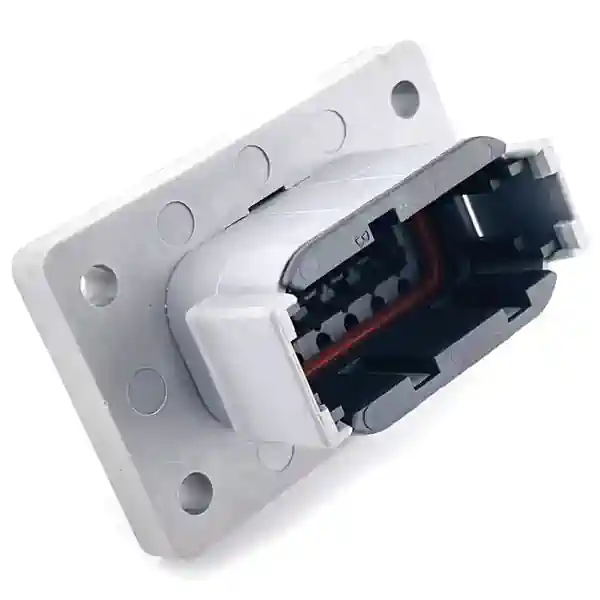

Deutsch DTM04-12PB-L012 12-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DTM06-12SB Plugs. Rated at 7.5 amps continuous and accommodates wire sizes 16-22 AWG.
