DTHD06-1-12S Plug Assembly
Click image to enlarge

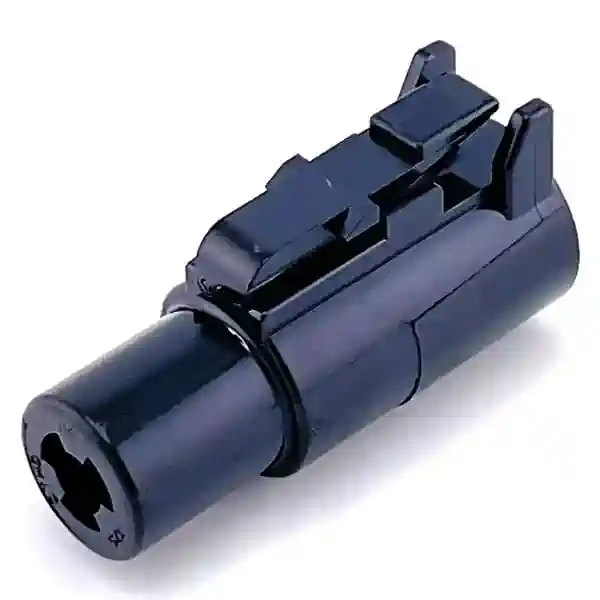

Deutsch DTHD "Power Plug" Series DTHD06-1-12S Plug Assembly, Black, single wire, complete with socket. Rated at 25 amps continuous, accomodates wire sizes 10-14 AWG. Mates with DTHD04-1-12P Receptacle.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DTHD06-1-12S |
| Required Wedgelock: | None |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DTHD Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Black |
| Shape: | Circular |
| Cavities: | 1 |
| Insulation: | .134"-.170" |
| Wire Gauge: | 10-14 AWG |
| Mates with: | DTHD04-1-12P Receptacle |
| Contact Size: | 8 |
| Current Rating: | 25 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |
Sealing Plug, for sealing unused cavities
Socket, Stamped and Formed, Nickel, 12-14 AWG, .113-.176 Insulation
Socket, Stamped and Formed, Nickel, 10 AWG, .140-.204 Insulation
Socket, Solid, Nickel, 12-14 AWG
Tri-Star C10-1212-090 Socket
Solid, Nickel, 12-14 AWG
Deutsch 0462-203-12141 Equivalent
Socket, Solid, Gold, 12-14 AWG
