DT Series Flange Mount Connectors
Click image to enlarge
Deutsch DT04-2P-L012 2-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-2S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-2P-N006 2-Way Receptacle Assembly, Black, Two Receptacle 90° Module. Molded-in Gold pins. Mates with all DT06-2S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

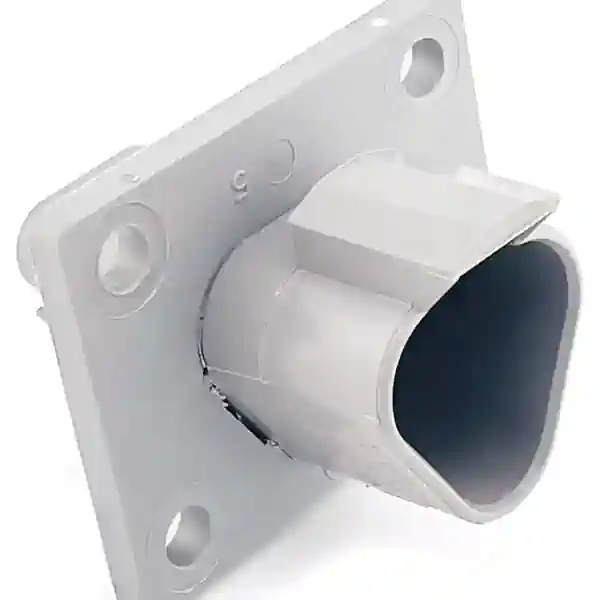

Deutsch DT04-3P-L012 3-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-3S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-4P-L012 4-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-4S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-4P-LE11 4-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-4S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-6P-CL09 6-Way Receptacle Assembly, Flange Mount, Gasketed, Black. Complete with wedgelock and choice of pins. Mates with all DT06-6S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

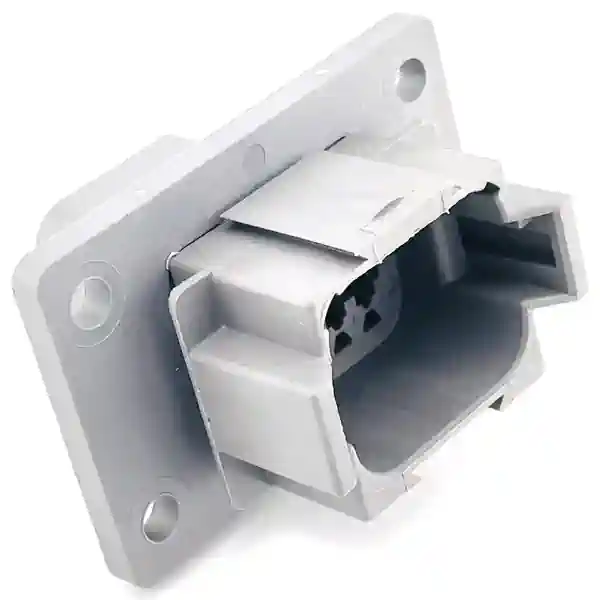

Deutsch DT04-08PA-L012 8-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

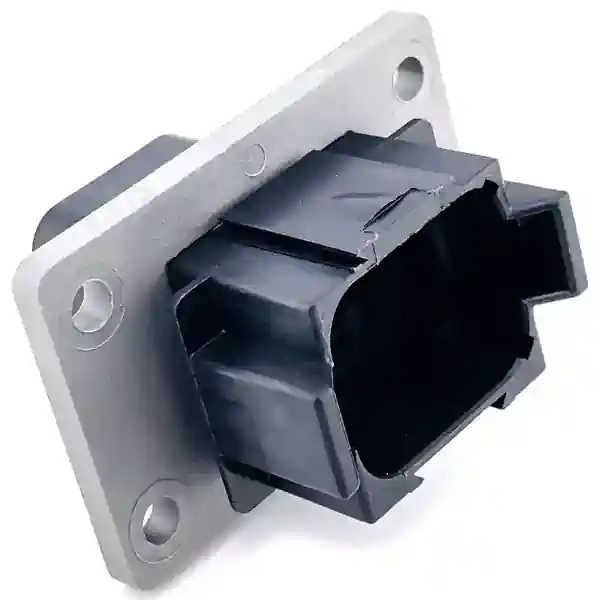

Deutsch DT04-08PB-L012 8-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-08SB Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

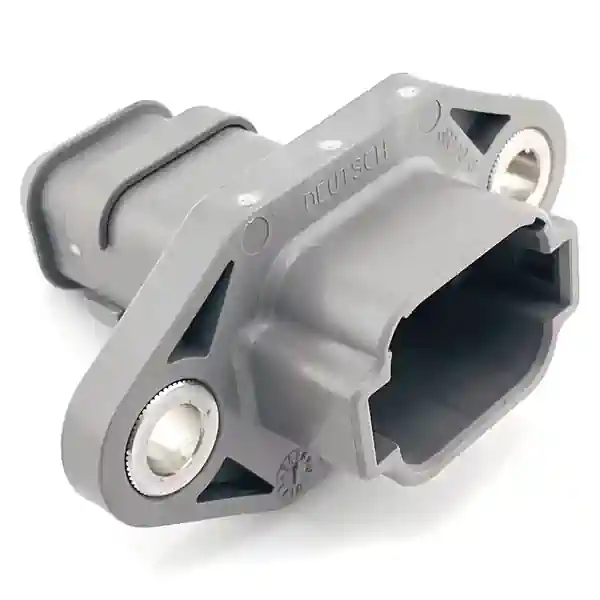

Deutsch DT04-08PA-LE03 8-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PA-L012 12-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-12SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PB-L012 12-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-12SB Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PC-L012 12-Way Receptacle Assembly, Flange Mount, Green. Complete with wedgelock and choice of pins. Mates with all DT06-12SC Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PD-L012 12-Way Receptacle Assembly, Flange Mount, Brown. Complete with wedgelock and choice of pins. Mates with all DT06-12SD Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PA-LE01 12-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-12SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PB-LE01 12-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-12SB Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PC-LE01 12-Way Receptacle Assembly, Flange Mount, Green. Complete with wedgelock and choice of pins. Mates with all DT06-12SC Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-12PA-LE03 12-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-12SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG. Order O-Ring Seal separately.
Click image to enlarge

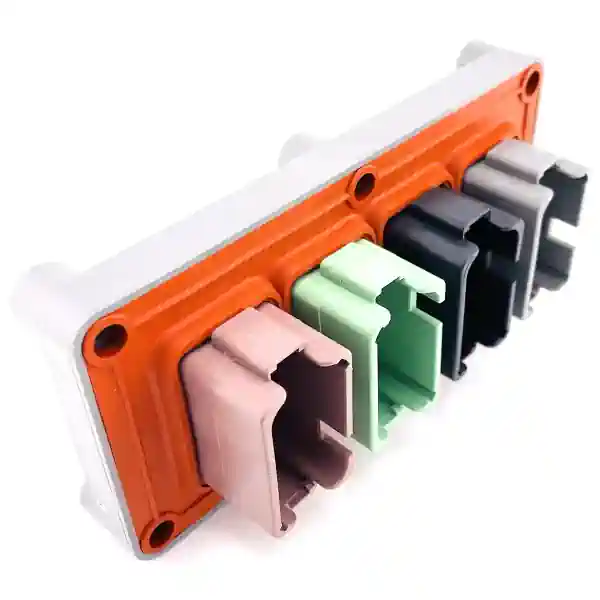

Deutsch DT04-48P-B016 48-Way Receptacle Assembly, Enhanced Key, Flange Mount, Front Gasketed for rear mounting. Enhanced key prevents forced mating. Mates with DT06-12S-P012 Enhanced Plugs. Complete with wedgelocks and choice of pins. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
