DT Series 8-Way Connectors
Click image to enlarge

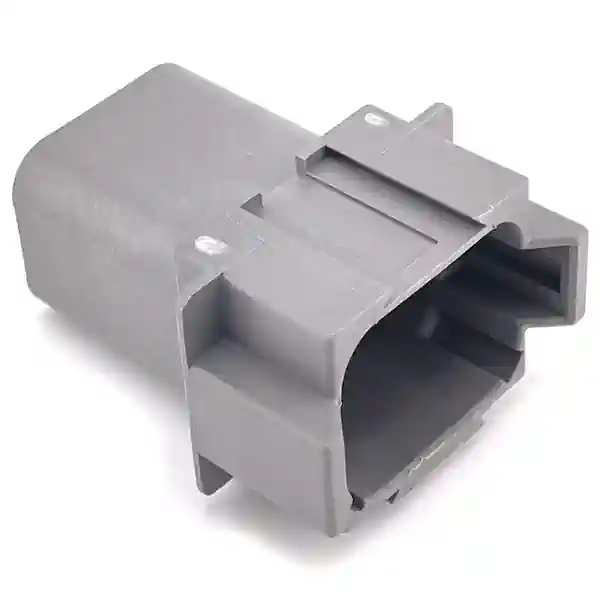

Deutsch DT04-08PA 8-Way Receptacle Assembly, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT06-08SA 8-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DT04-08PA Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-08PB 8-Way Receptacle Assembly, Black. Complete with wedgelock and choice of pins. Mates with all DT06-08SB Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

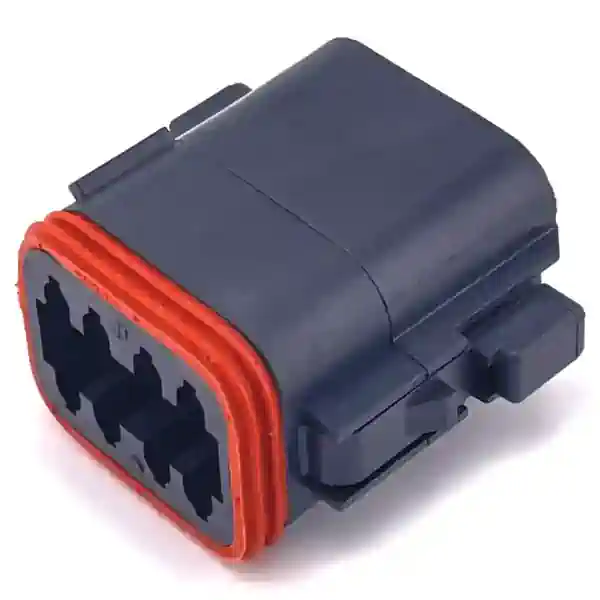

Deutsch DT06-08SB 8-Way Plug Assembly, Black. Complete with wedgelock and choice of sockets. Mates with all DT04-08PB Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

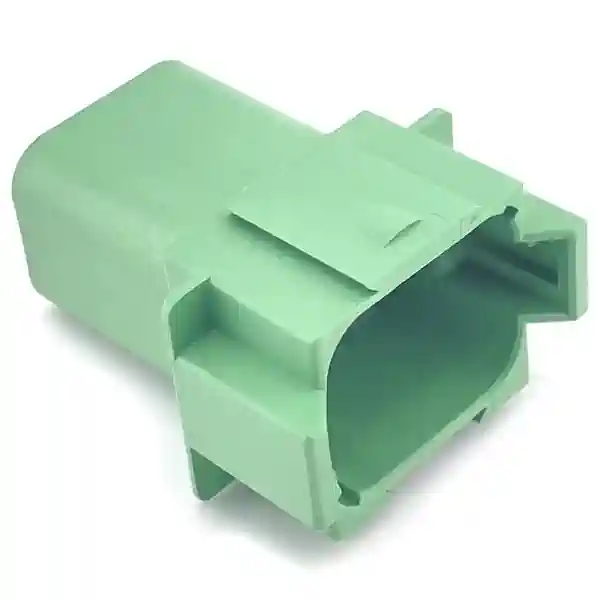

Deutsch DT04-08PC 8-Way Receptacle Assembly, Green. Complete with wedgelock and choice of pins. Mates with all DT06-08SC Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

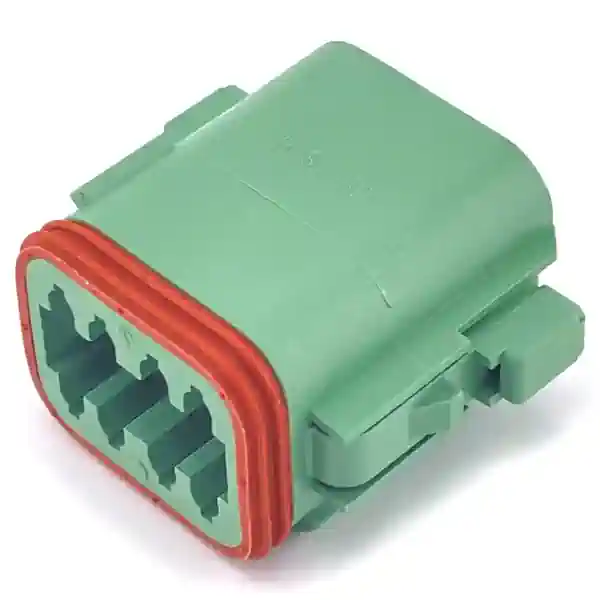

Deutsch DT06-08SC 8-Way Plug Assembly, Green. Complete with wedgelock and choice of sockets. Mates with all DT04-08PC Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-08PD 8-Way Receptacle Assembly, Brown. Complete with wedgelock and choice of pins. Mates with all DT06-08SD Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

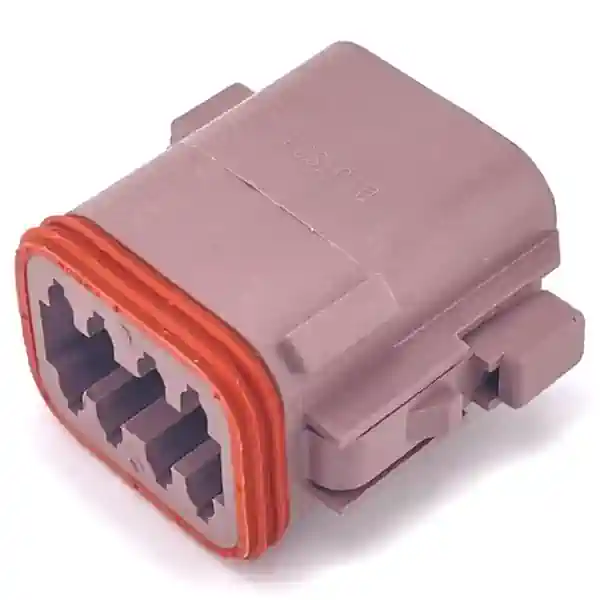

Deutsch DT06-08SD 8-Way Plug Assembly, Brown. Complete with wedgelock and choice of sockets. Mates with all DT04-08PD Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

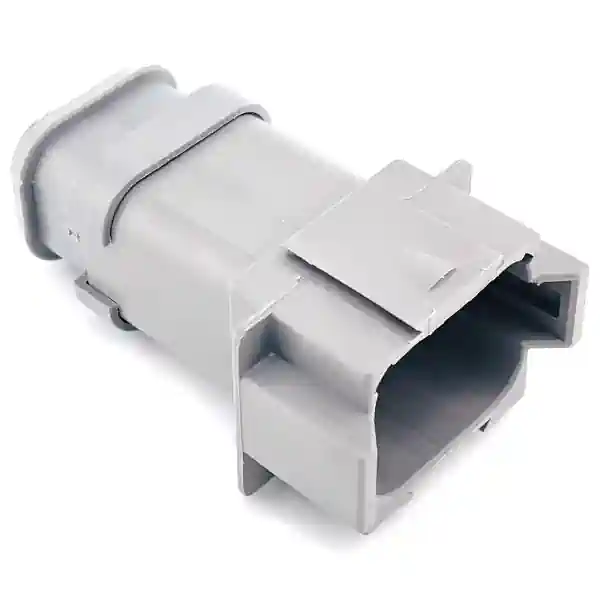

Deutsch DT04-08PA-E008 8-Way Receptacle Assembly, Extended Housing, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge

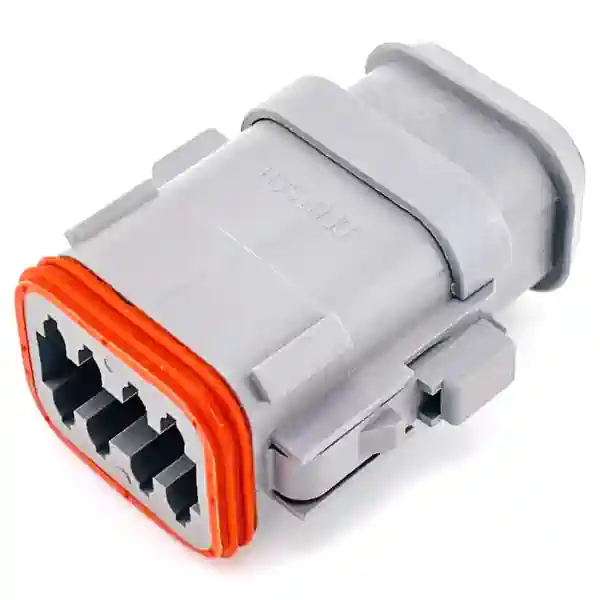

Deutsch DT06-08SA-E008 8-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DT04-08PA Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-08PA-L012 8-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-08PB-L012 8-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-08SB Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
Click image to enlarge
Deutsch DT04-08PA-LE03 8-Way Receptacle Assembly, Flange Mount, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-08SA Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
