DT04-6P Receptacle Assembly
Click image to enlarge
Deutsch DT04-6P 6-Way Receptacle Assembly, Gray. Complete with wedgelock and choice of pins. Mates with all DT06-6S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT04-6P |
| Required Wedgelock: | W6P Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 6 |
| Insulation: | .088"-.145" |
| Wire Gauge: | 12-20 AWG |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | In-line |

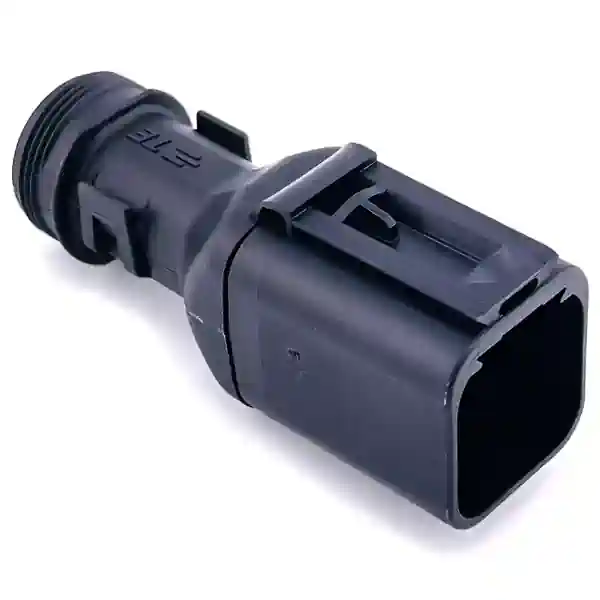

Deutsch 1011-241-0605 Backshell
Backshell, Black, Straight (180°)
Fits most DT04-6P Receptacles

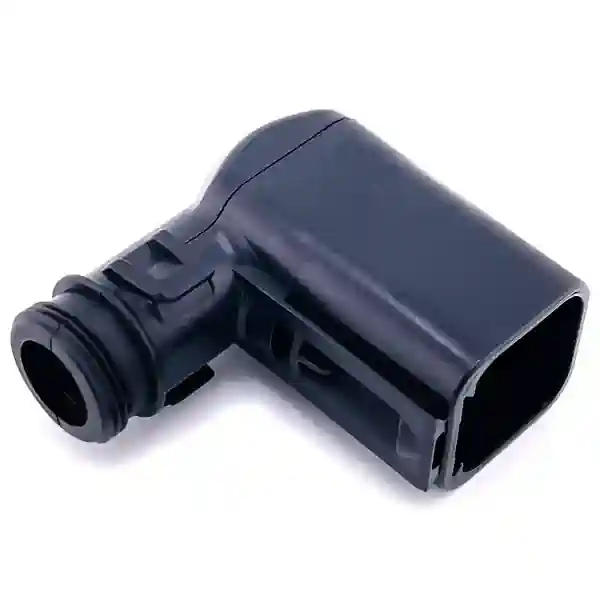

Deutsch 1011-242-0605 Backshell
Backshell, Black, 90°
Fits most DT04-6P Receptacles

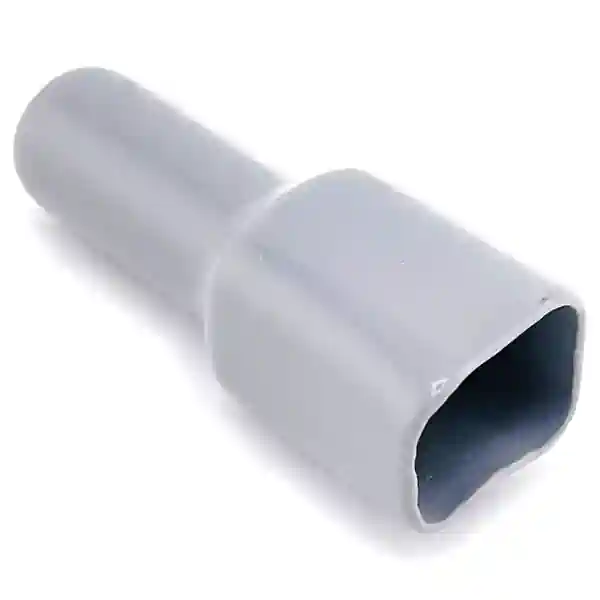

Boot, Gray
Fits most DT04-6P Receptacles

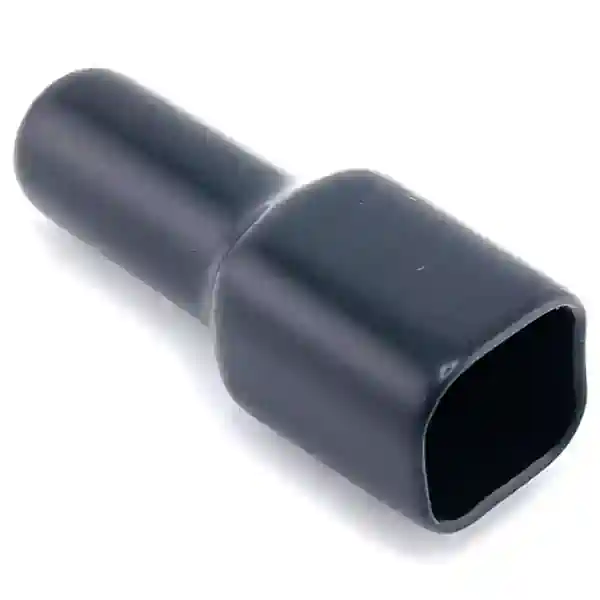

Boot, Black
Fits most DT04-6P Receptacles

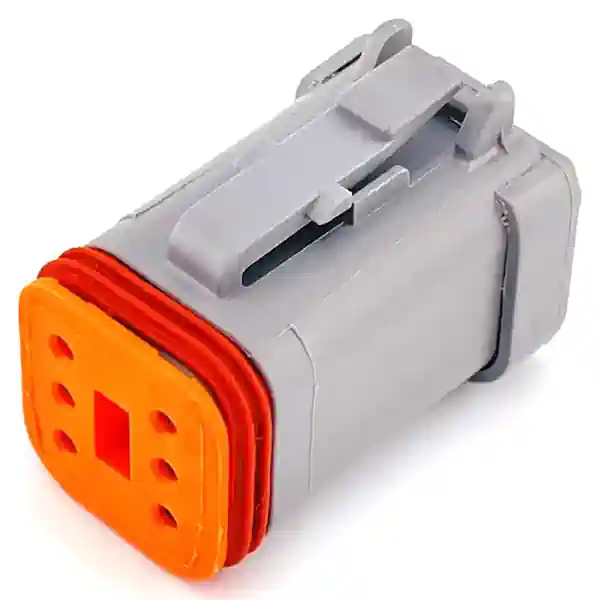

Deutsch DT06-6S-C017 Dust Plug
Dust Plug, Fits DT04-6P Receptacles

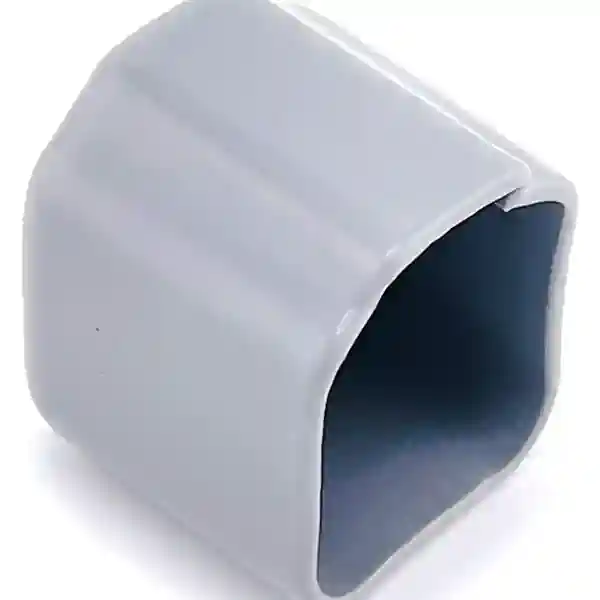

Dust Cap, Fits DT04-6P Receptacles

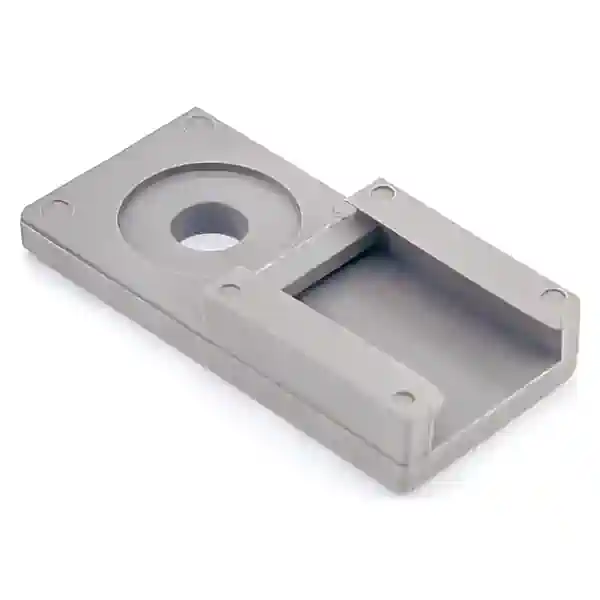

Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount

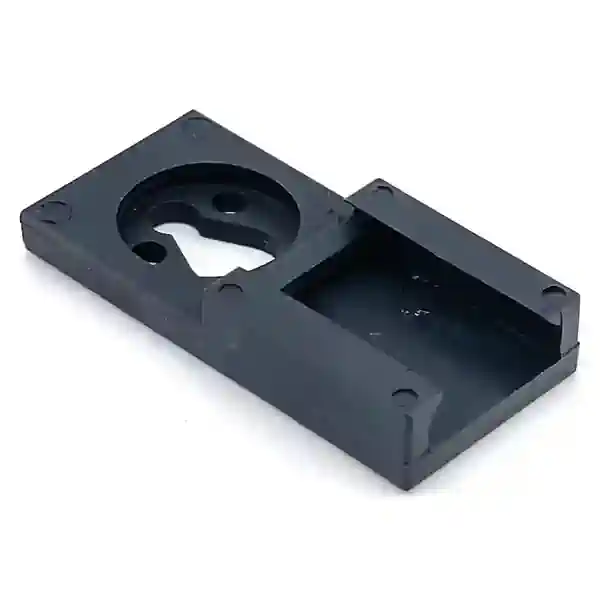

Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount

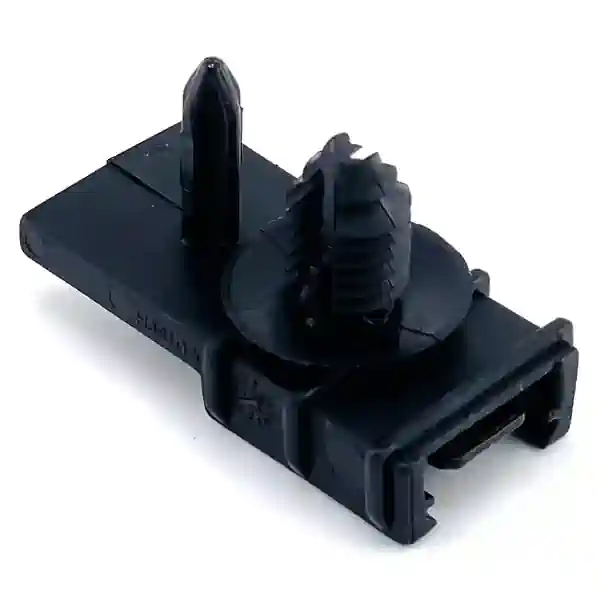

Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
Deutsch 0413-217-1605 Sealing Plug, Locking
Sealing Plug, Locking, for sealing unused cavities
Sealing Plug, for sealing unused cavities

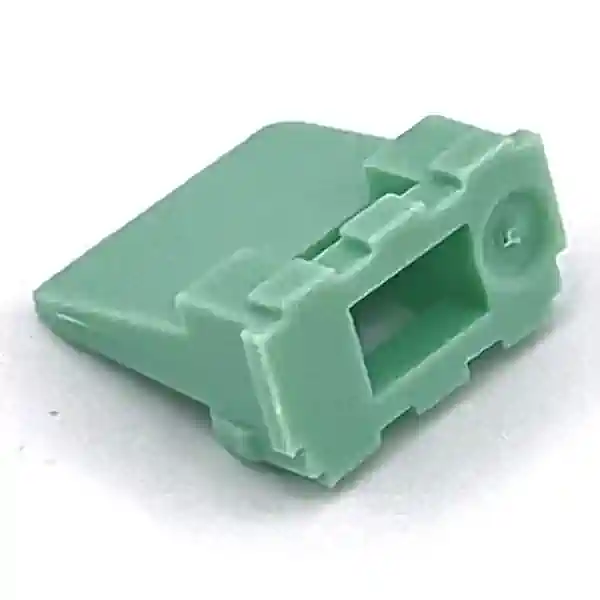

Wedgelock, Green
Deutsch DT04-6P Receptacle, Housing Only
Housing Only, No Pins, No Wedgelock. Order Separately. Includes Seal(s).
Pin, Stamped and Formed, Nickel, 14-18 AWG, .075-.140 Insulation
Pin, Stamped and Formed, Nickel, 16-20 AWG, .055-.100 Insulation
Pin, Stamped and Formed, Nickel, 14-18 AWG, .095-.150 Insulation
Pin, Stamped and Formed, Nickel, 12-16 AWG, .075-.140 Insulation
Pin, Solid, Nickel, 16-20 AWG
Pin, Solid, Nickel, 14 AWG
Pin, Solid, Gold, 16-20 AWG
Pin, Solid, Gold, 14 AWG
