DT04-4P-LE11 Receptacle Assembly
Click image to enlarge
Deutsch DT04-4P-LE11 4-Way Receptacle Assembly, Flange Mount, Black. Complete with wedgelock and choice of pins. Mates with all DT06-4S Plugs. Rated at 13 amps continuous and accommodates wire sizes 12-20 AWG.
| Manufacturer Name: | TE Connectivity Deutsch |
| Housing Part Number: | DT04-4P-LE11 |
| Modification: | LE11, Black, End Cap, Flange Mount |
| Required Wedgelock: | W4P Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Black |
| Shape: | Rectangular |
| Cavities: | 4 |
| Insulation: | .088"-.145" |
| Wire Gauge: | 12-20 AWG |
| Mates with: | All Deutsch DT06-4S Plugs |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Pin |
| Flange / Inline / PCB Mount: | Flange Mount - Non-Sealed Flange |
| Required Gasket: | DT4P-L012-GKT Not included, Order separately |
| Template: | Download Mounting Template - 34 KB |
Deutsch DT06-4S-C017 Dust Plug
Dust Plug, Fits DT04-4P Receptacles
Dust Cap, Fits DT04-4P Receptacles

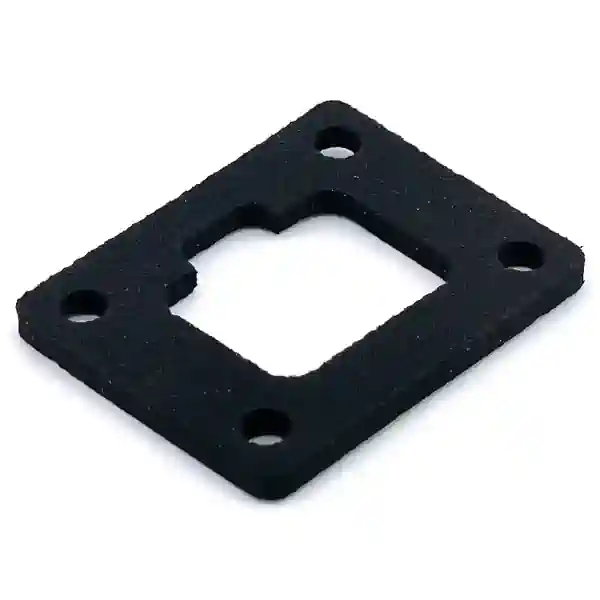

Gasket, Neoprene
Deutsch 0413-217-1605 Sealing Plug, Locking
Sealing Plug, Locking, for sealing unused cavities
Sealing Plug, for sealing unused cavities
Wedgelock, Green
Deutsch DT04-4P-LE11 Receptacle, Housing Only
Housing Only, No Pins, No Wedgelock. Order Separately. Includes Seal(s).
Pin, Stamped and Formed, Nickel, 14-18 AWG, .075-.140 Insulation
Pin, Stamped and Formed, Nickel, 16-20 AWG, .055-.100 Insulation
Pin, Stamped and Formed, Nickel, 14-18 AWG, .095-.150 Insulation
Pin, Stamped and Formed, Nickel, 12-16 AWG, .075-.140 Insulation
Pin, Solid, Nickel, 16-20 AWG
Pin, Solid, Nickel, 14 AWG
Pin, Solid, Gold, 16-20 AWG
Pin, Solid, Gold, 14 AWG
