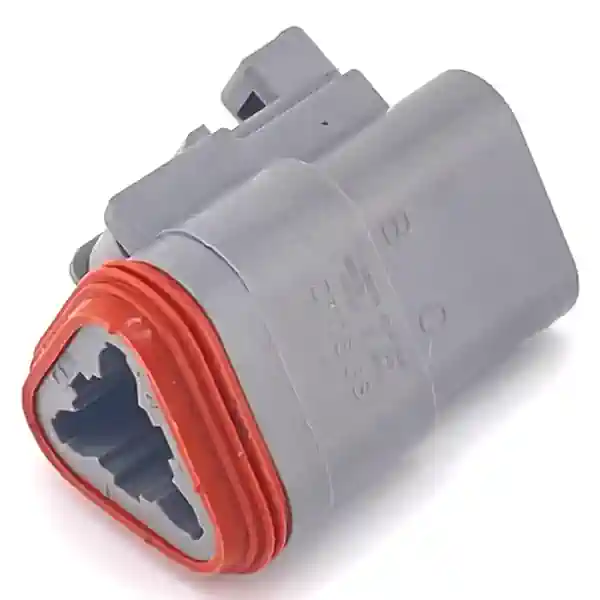

DT06-3S Plug Assembly
Click image to enlarge
Deutsch DT06-3S 3-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DT04-3P Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT06-3S |
| Required Wedgelock: | W3S Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Triangular |
| Cavities: | 3 |
| Insulation: | .088"-.145" |
| Wire Gauge: | 12-20 AWG |
| Mates with: | All Deutsch DT04-3P Receptacles |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |
Product Change Notification
PCN Date: 08/07/2017
First Date To Ship Changed Parts: 11/10/2017
Last Date for Mixed Shipments of Changed Parts: 12/31/2019
TE Connectivity has issued a Product Change Notification for this part. The DT06-3S Plug housing is now manufactured and supplied with the Enhanced Seal Retention modification. With this product change the DT06-3S is now compatible with either the Standard (Orange) W3S Wedgelock or the Enhanced (Green) W3S-P012 Enhanced Seal Retention Wedgelock.
Please note that when ordering a replacement Front Seal for this connector it is important to identify whether you have the old housing style or the new housing style.
DeutschConnector.com stocks both the Standard, 1010-002-0306, front seal and the Enhanced, 1010-062-0306, front seal as well as the Standard, W3S, Orange, Wedgelock and the Enhanced Seal Retention, W3S-P012, Green, Wedgelock.

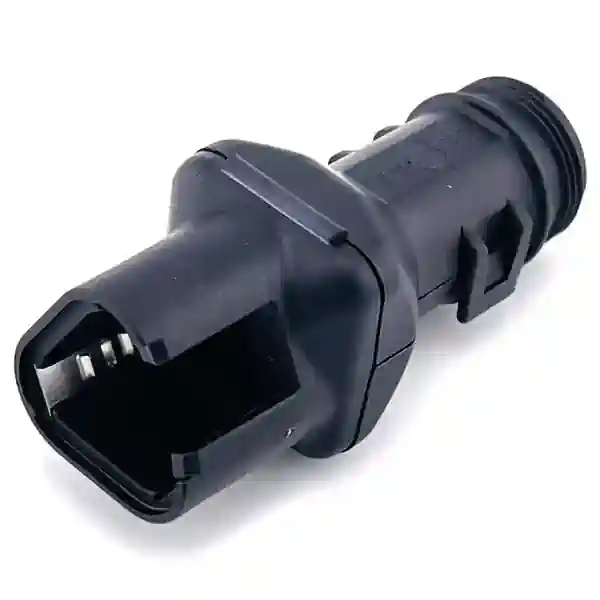

Deutsch 1011-231-0305 Backshell
Backshell, Black, Straight (180°)
Fits most DT06-3S Plugs

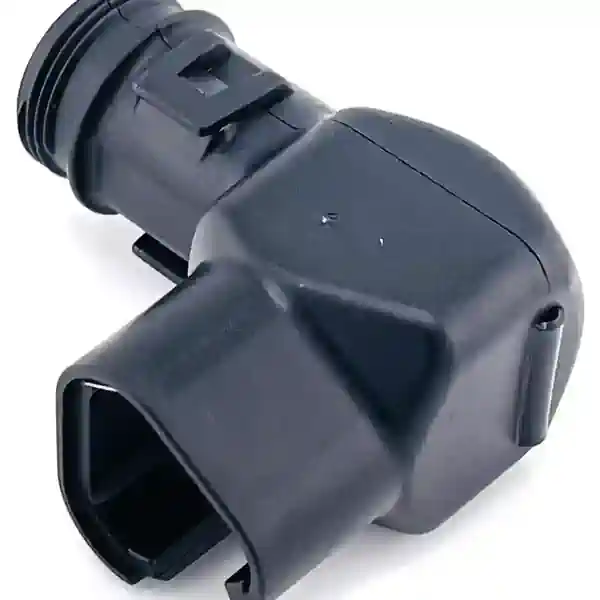

Deutsch 1011-232-0305 Backshell
Backshell, Black, 90°
Fits most DT06-3S Plugs

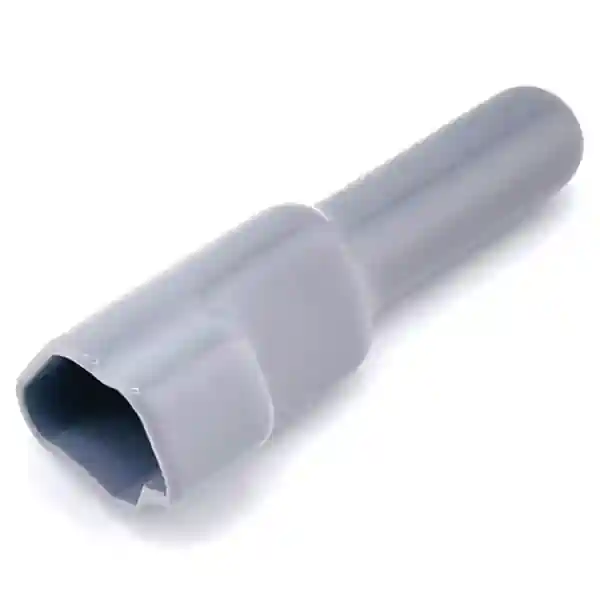

Boot, Gray
Fits most DT06-3S Plugs

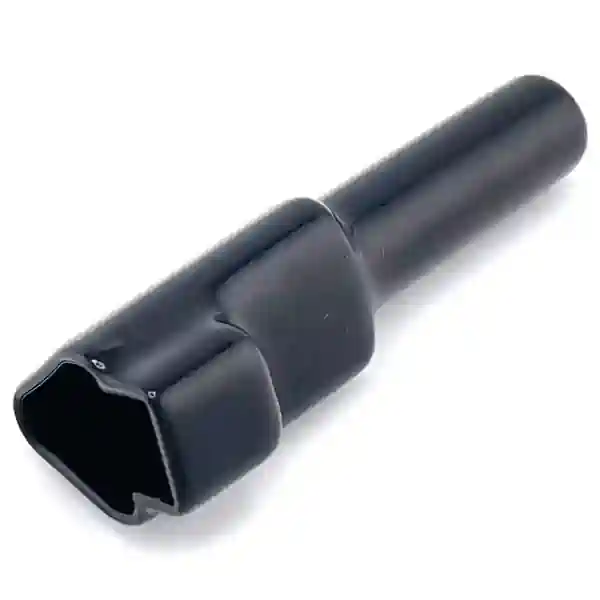

Boot, Black
Fits most DT06-3S Plugs

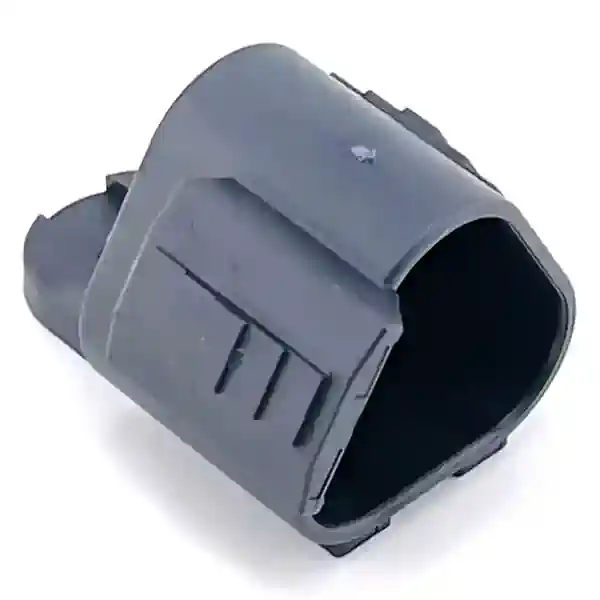

Deutsch 1011-345-0305 Dust Cap
Dust Cap with mounting lug
Fits DT06-3S Plugs
Deutsch 0413-217-1605 Sealing Plug, Locking
Sealing Plug, Locking, for sealing unused cavities
Sealing Plug, for sealing unused cavities

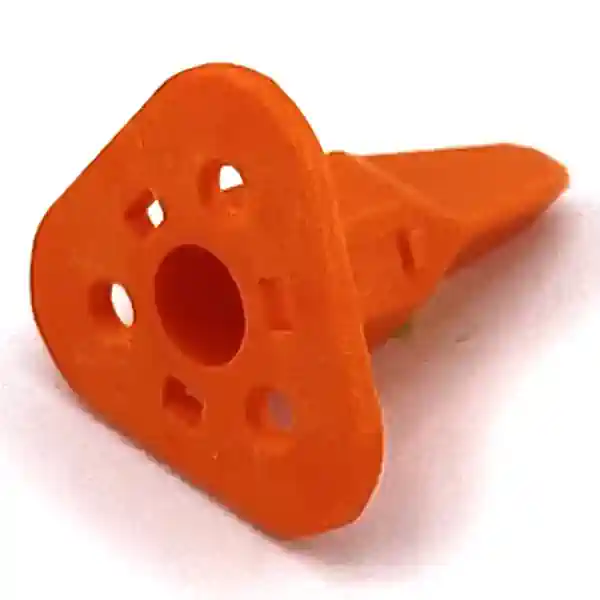

Wedgelock, Orange

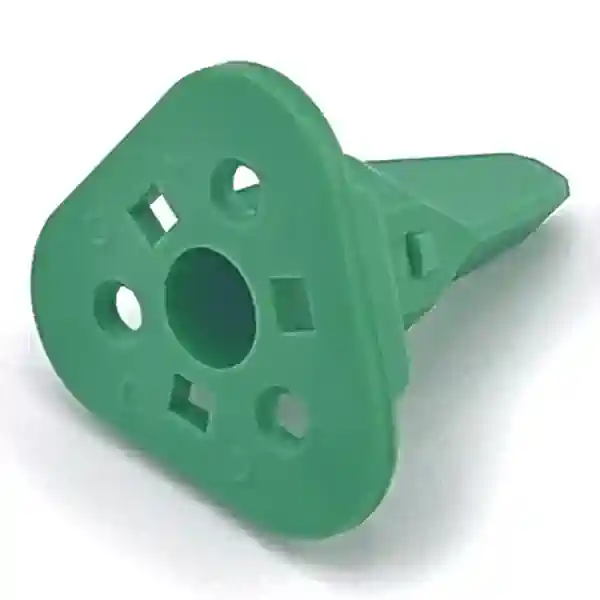

Wedgelock, Green, Enhanced Seal Retention

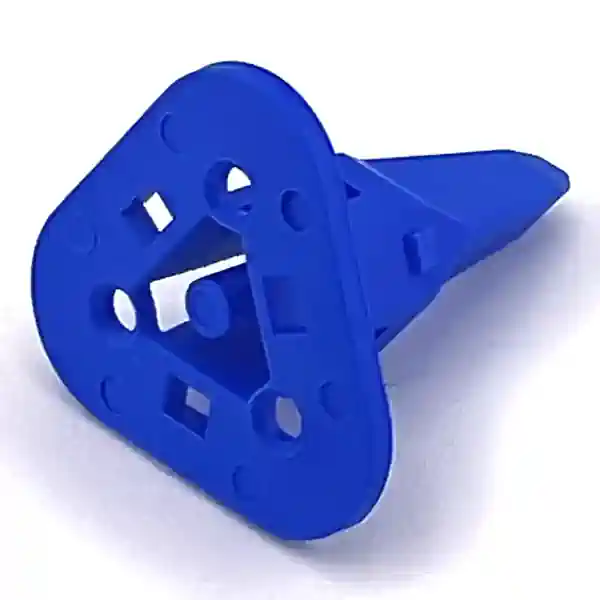

Wedgelock, Blue
Seal, Front, Standard

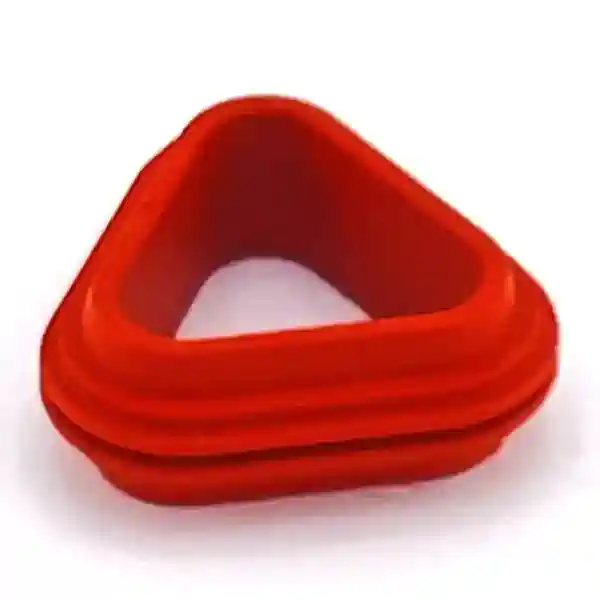

Seal, Front, Enhanced
Deutsch DT06-3S Plug, Housing Only
Housing Only, No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 14-18 AWG, .075-.140 Insulation
Socket, Stamped and Formed, Nickel, 16-20 AWG, .055-.100 Insulation
Socket, Stamped and Formed, Nickel, 14-18 AWG, .095-.150 Insulation
Socket, Stamped and Formed, Nickel, 12-16 AWG, .075-.140 Insulation
Socket, Solid, Nickel, 16-20 AWG
Socket, Solid, Nickel, 14 AWG
Socket, Solid, Gold, 16-20 AWG
Socket, Solid, Gold, 14 AWG
