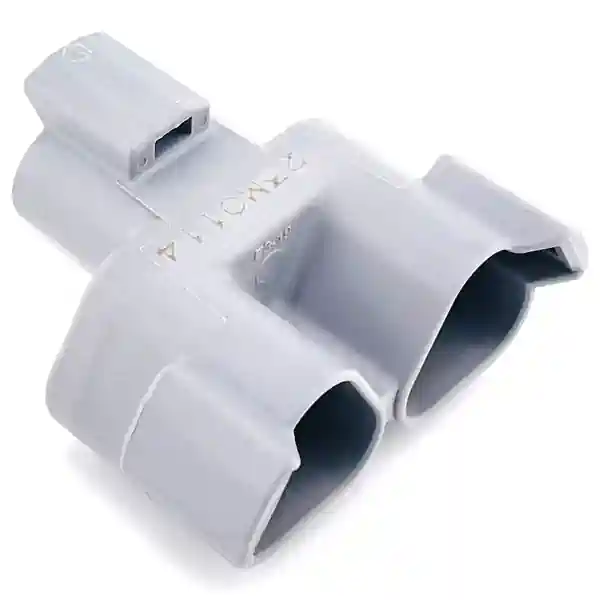

DT04-3P-P007 "Y" Receptacle
Click image to enlarge
Deutsch DT04-3P-P007 "Y" Receptacle features molded-in gold pins. Includes the two W3S-1939 keyed wedgelocks required for the mating plugs. Mates with all DT06-3S Plugs with appropriate wedgelocks. Rated at 13 amps continuous.
| Manufacturer Name: | TE Connectivity |
| Manufacturer Part Number: | DT04-3P-P007 |
| Modification: | P007, Molded Gold Pins, J1939 |
| Required Wedgelock: | None |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Triangular |
| Cavities: | 3 x 3 |
| Keyed: | True, one mating plug requires a Standard, W3S, Orange Wedgelock and the other two mating plugs require W3S-1939, Blue Wedgelocks. |
| Mates with: | All Deutsch DT06-3S Plugs with appropriate wedgelocks as follows. One DT06-3S Plug with W3S Wedgelock and Two DT06-3S Plugs with W3S-1939 Wedgelocks. |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Molded-In Gold Pins |
| Flange / Inline / PCB Mount: | In-line |
Deutsch DT06-3S-C017 Dust Plug
Dust Plug, Fits DT04-3P Receptacles
Dust Cap, Fits DT04-3P Receptacles
Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount
Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount
Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
