DT06-2S-SDT-CE28 12 Volt DC Plug Assembly
Click image to enlarge
Deutsch DT06-2S-SDT-CE28 2-Way Plug Assembly, 12 volt DC Integrated LED. Provides distinct glow for a visual confirmation of power. Enhanced Seal Retention, Reduced Dia. Seals. Complete with wedgelock and choice of sockets. Mates with all DT04-2P Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT06-2S-SDT-CE28 (2286003-3) |
| Modification: | Transparent housing, Enhanced Seal Retention, Reduced Dia. Seals |
| Required Wedgelock: | W2S-SDT-12V or W2S-SDT-24V Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DT Series |
| Material: | Ultem |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Transparent |
| Shape: | Rectangular |
| Cavities: | 2 |
| Insulation: | .053"-.120" |
| Wire Gauge: | 12-20 AWG |
| Mates with: | All Deutsch DT04-2P Receptacles |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |
| Other: | Transparent housing with Integrated LED wedgelock. Provides distinct glow for a visual confirmation of power. Available for 12 or 24 volts DC. Polarized, Pin 1 Positive, Pin 2 Negative. Compatible with pulse width modulated control. |
Deutsch 1011-227-0205 Backshell
Backshell, Black, Straight (180°)
Fits most DT06-2S Plugs
Deutsch 1011-228-0205 Backshell
Backshell, Black, 90°
Fits most DT06-2S Plugs
Boot, Gray
Fits most DT06-2S Plugs
Boot, Black
Fits most DT06-2S Plugs
Deutsch 1011-344-0205 Dust Cap
Dust Cap with mounting lug
Fits DT06-2S
Deutsch 0413-217-1605 Sealing Plug, Locking
Sealing Plug, Locking, for sealing unused cavities
Sealing Plug, for sealing unused cavities

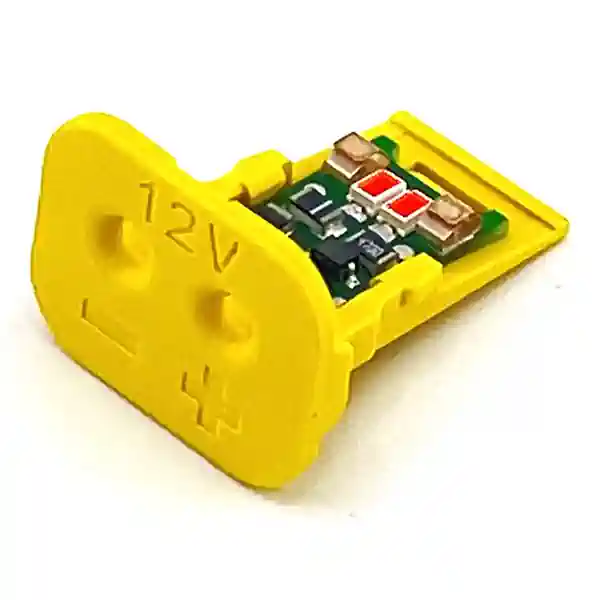

12 Volts DC, Integrated LED Wedgelock

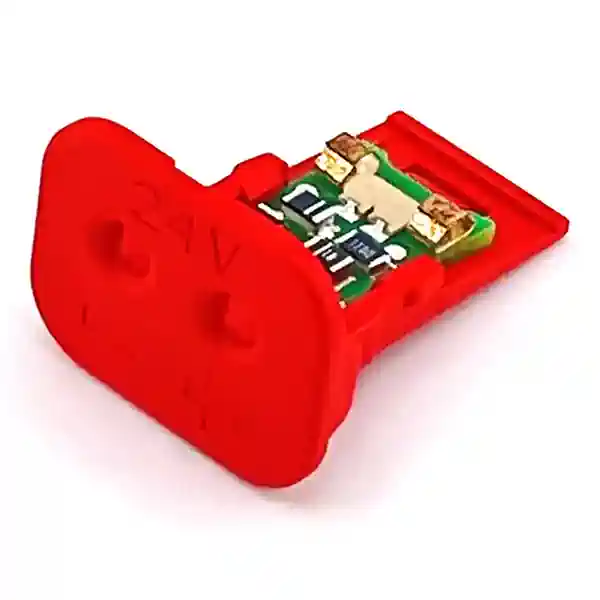

24 Volts DC, Integrated LED Wedgelock
Seal, Front, Enhanced
Deutsch DT06-2S-SDT-CE28 Plug, Housing Only
Housing Only, No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 14-18 AWG, .075-.140 Insulation
Socket, Stamped and Formed, Nickel, 16-20 AWG, .055-.100 Insulation
Socket, Stamped and Formed, Nickel, 14-18 AWG, .095-.150 Insulation
Socket, Stamped and Formed, Nickel, 12-16 AWG, .075-.140 Insulation
Socket, Solid, Nickel, 16-20 AWG
Socket, Solid, Nickel, 14 AWG
Socket, Solid, Gold, 16-20 AWG
Socket, Solid, Gold, 14 AWG
