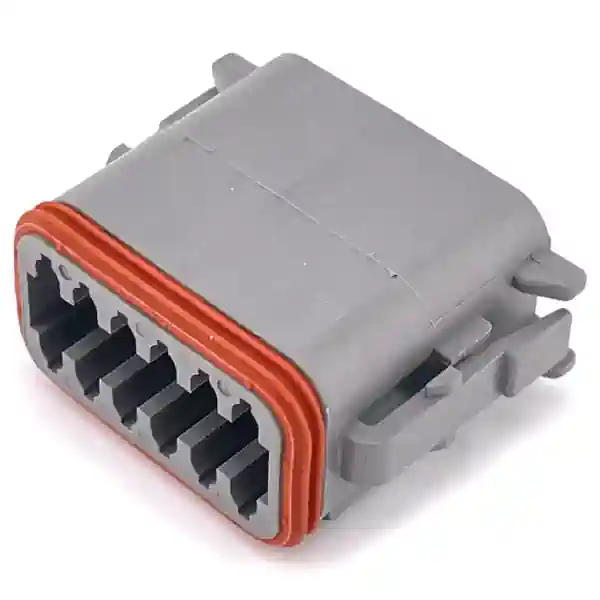

DT06-12SA Plug Assembly
Click image to enlarge
Deutsch DT06-12SA 12-Way Plug Assembly, Gray. Complete with wedgelock and choice of sockets. Mates with all DT04-12PA Receptacles. Rated 13 amps continuous and accommodates wire sizes 12-20 AWG.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT06-12SA |
| Required Wedgelock: | W12S Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 12 |
| Insulation: | .088"-.145" |
| Wire Gauge: | 12-20 AWG |
| Keyed: | True, A Key |
| Mates with: | All Deutsch DT04-12PA Receptacles |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |

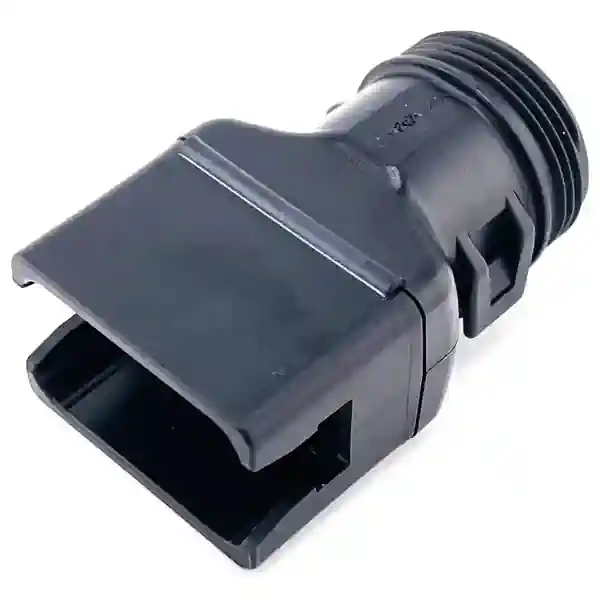

Deutsch 1011-247-1205 Backshell
Backshell, Black, Straight (180°)
Fits most DT06-12S Plugs

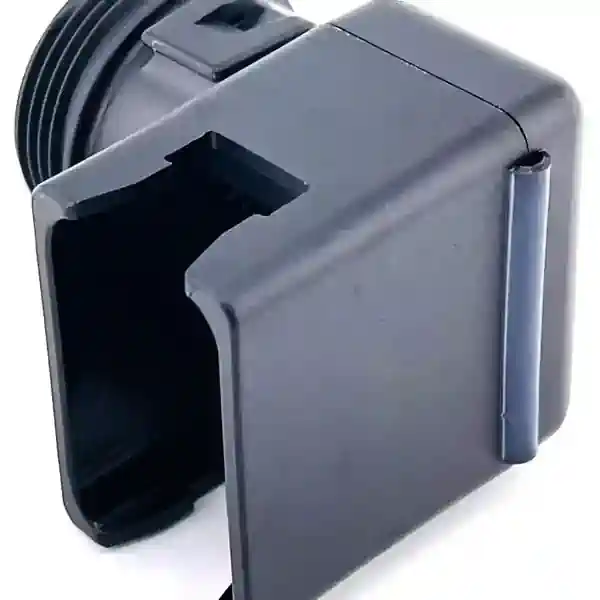

Deutsch 1011-248-1205 Backshell
Backshell, Black, 90°
Fits most DT06-12S Plugs

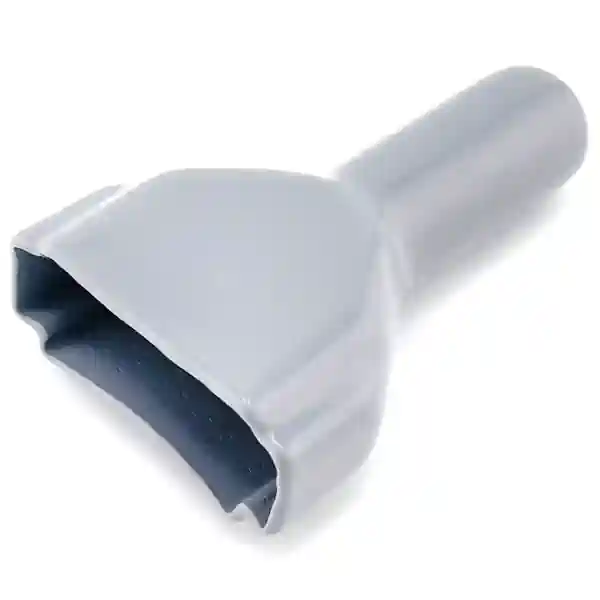

Boot, Gray
Fits most DT06-12S Plugs

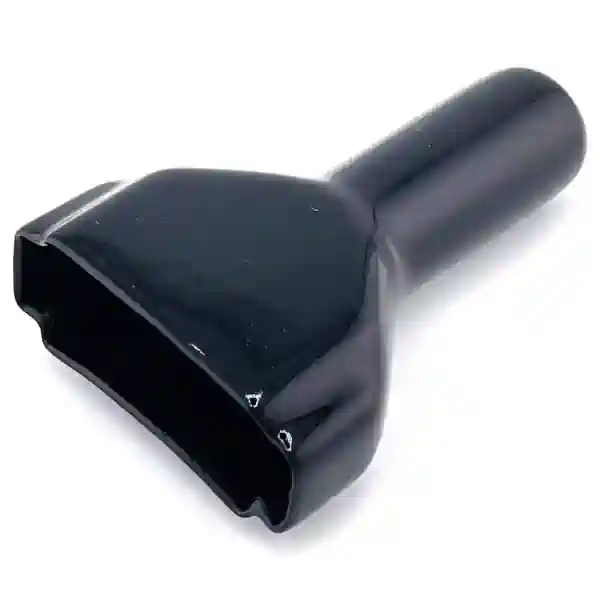

Boot, Black
Fits most DT06-12S Plugs

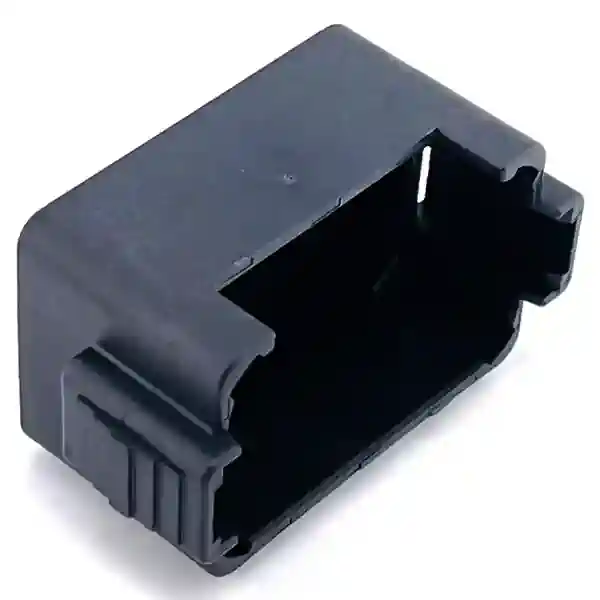

Deutsch 1011-349-1205 Dust Cap
Dust Cap with mounting lug
Fits all DT06-12S Plugs

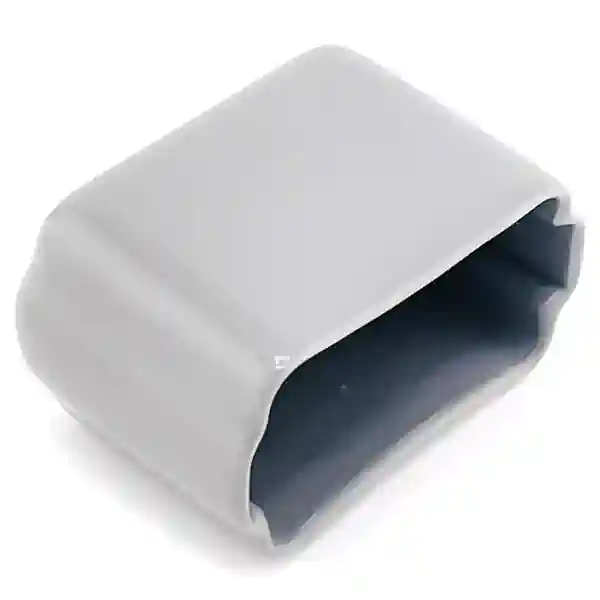

Dust Cap, Fits all DT06-12S Plugs
Deutsch 0413-217-1605 Sealing Plug, Locking
Sealing Plug, Locking, for sealing unused cavities
Sealing Plug, for sealing unused cavities

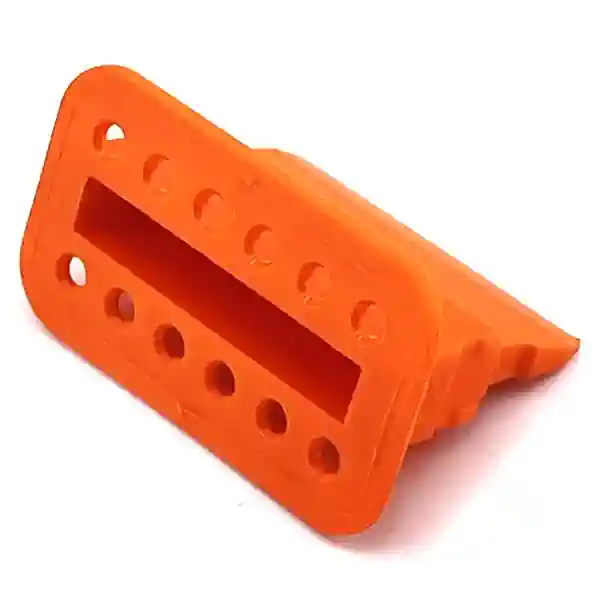

Wedgelock, Orange

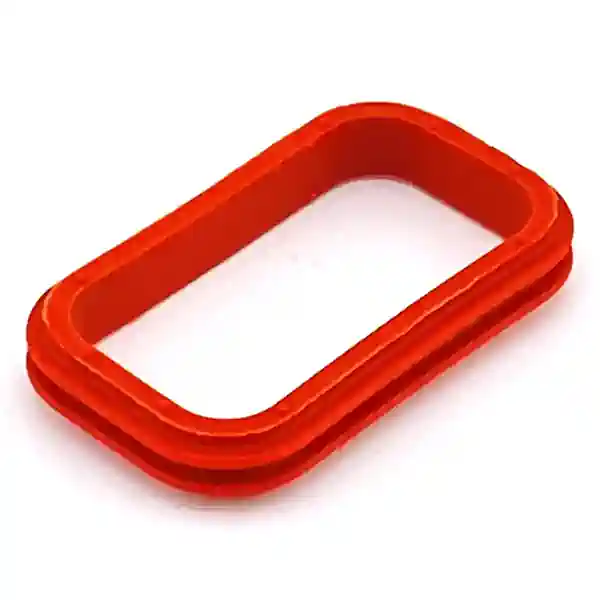

Seal, Front, Standard
Deutsch DT06-12SA Plug, Housing Only
Housing Only, No Sockets, No Wedgelock. Order Separately. Includes Seal(s).
Socket, Stamped and Formed, Nickel, 14-18 AWG, .075-.140 Insulation
Socket, Stamped and Formed, Nickel, 16-20 AWG, .055-.100 Insulation
Socket, Stamped and Formed, Nickel, 14-18 AWG, .095-.150 Insulation
Socket, Stamped and Formed, Nickel, 12-16 AWG, .075-.140 Insulation
Socket, Solid, Nickel, 16-20 AWG
Socket, Solid, Nickel, 14 AWG
Socket, Solid, Gold, 16-20 AWG
Socket, Solid, Gold, 14 AWG
