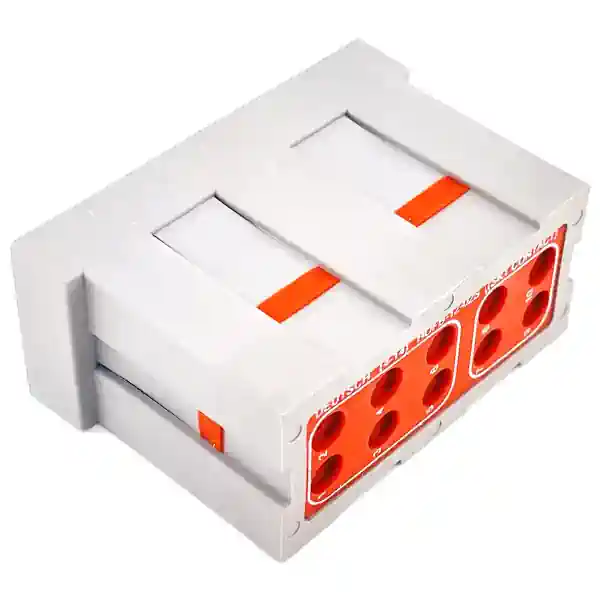

HDFB-12-02S Bussed Feedback Module
Click image to enlarge
HDFB-12-02S Bussed Feedback Module has an integrated internal buss for use as a splice block or tap block. Mates with standard DTP Series, size 12, Socket contacts.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | HDFB-12-02S |
| Modification: | (1) 4 pin buss / (1) 6 pin buss |
| Required Seals: | Included |
| Series: | Deutsch HDFB Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 10 |
| Insulation: | .134"-.170" |
| Wire Gauge: | 10-14 AWG |
| Mates with: | All Deutsch DTP Series, Size 12 Pins |
| Contact Size: | 12 |
| Current Rating: | 25 Amps Continuous |
| Holds Pin / Socket: | Socket |
| Flange / Inline / PCB Mount: | In-line |
| Bussing Arrangement: |  |

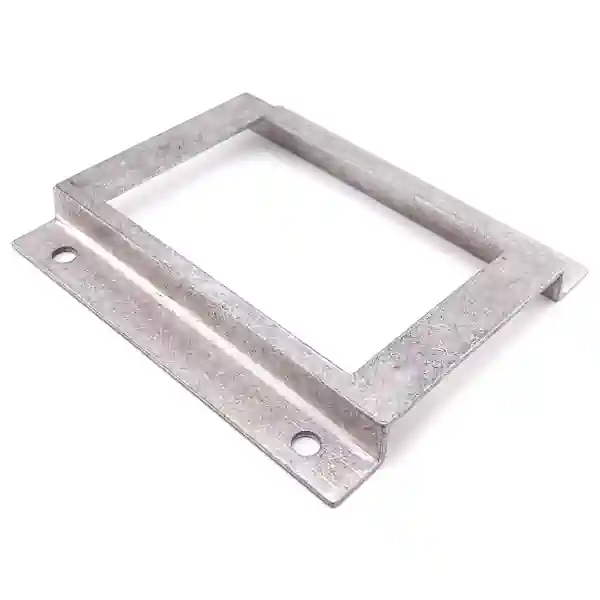

Deutsch 0427-201-0390 3-Hole Mounting Bracket
Mounting Bracket
Stock Status: In stock and ready to ship. This item has been discontinued by Deutsch TE and will no longer be available after current inventory has been depleted. No substitute available.
Minimum Order Quantity: 1
Maximum Order Quantity:5
Quantity Available: 5
Sealing Plug, for sealing unused cavities
