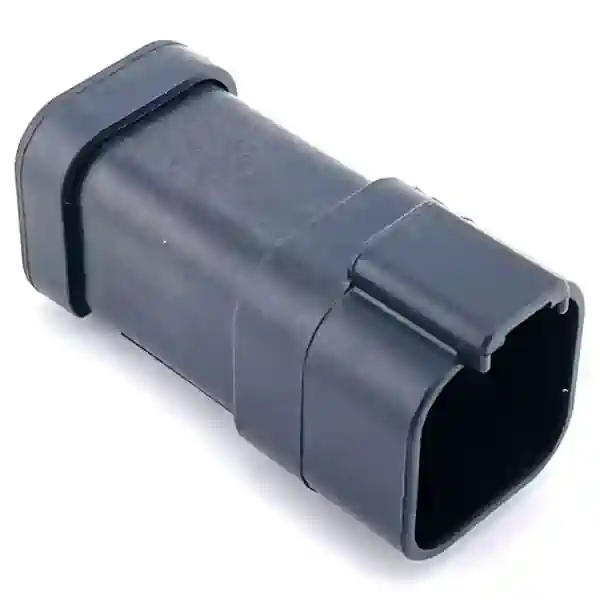

DT04-6P-EP13 Bussed Feedback Receptacle Assembly
Click image to enlarge
Deutsch DT04-6P-EP13 Bussed Feedback Receptacle has an integrated internal buss for use as a splice block or tap block. Mates with standard DT Series DT06-6S plugs.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT04-6P-EP13 |
| Modification: | EP13, (1) 6 Pin Buss, Nickel Contacts, Black |
| Required Wedgelock: | W6P Included |
| Required Seals: | Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Black |
| Shape: | Rectangular |
| Cavities: | 6 |
| Mates with: | All Deutsch DT06-6S Plugs |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Pins, Integral |
| Flange / Inline / PCB Mount: | In-line |
| Bussing Arrangement: |  |
