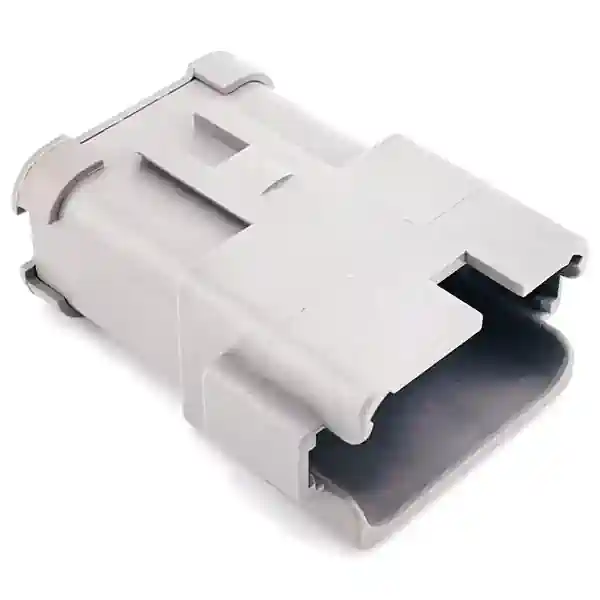

DT04-12PA-P075 Bussed Feedback Receptacle Assembly
Click image to enlarge
Deutsch DT04-12PA-P075 Bussed Feedback Receptacle has an integrated internal buss for use as a splice block or tap block. Mates with standard DT Series DT06-12SA plugs.
| Manufacturer Name: | TE Connectivity |
| Housing Part Number: | DT04-12PA-P075 |
| Modification: | P075, (3) 4 Pin Busses, Nickel Contacts, Enhanced Key |
| Required Wedgelock: | W12P Included |
| Required Seals: | Included |
| Series: | Deutsch DT Series |
| Material: | Thermoplastic |
| Operating Temperature: | -67°F (-55°C) to +257°F (+125°C) |
| IP Rating: | IP67 |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 12 |
| Keyed: | True, A Key, Enhanced |
| Mates with: | DT06-12SA-P012 Plug |
| Contact Size: | 16 |
| Current Rating: | 13 Amps Continuous |
| Holds Pin / Socket: | Pins, Integral |
| Flange / Inline / PCB Mount: | In-line |
| Bussing Arrangement: |  |
Deutsch 1011-026-0205 Mounting Clip
Gray, Screw Mount
Deutsch 1011-030-0205 Mounting Clip
Black, T-Stud or Screw Mount
Deutsch 1011-310-0205 Mounting Clip
Black, Fir Tree Stud Mount
Deutsch 1027-003-1200 Mounting Clip
Stainless Steel, Screw Mount
